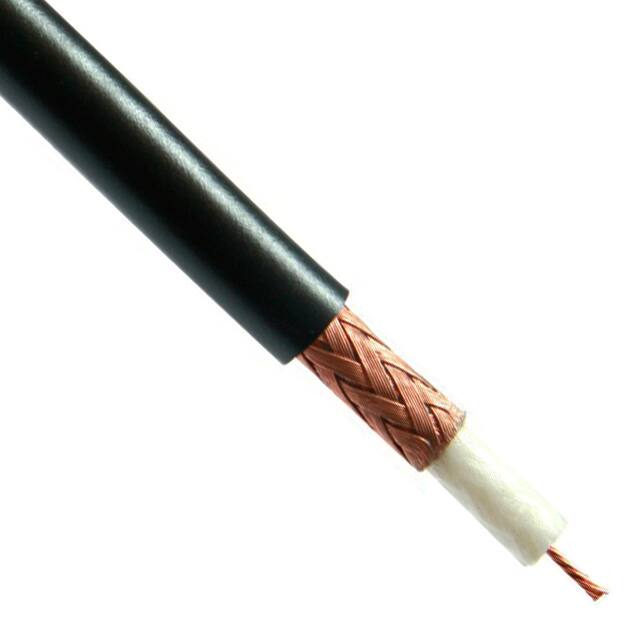

9221 010500

Specifications

RoHS Durumu

ROHS3 Compliant

Wire Gauge

30 AWG

Uzunluk

500.0' 152.40m

Shield Type

Braid

Jacket Insulation Diameter

0.097 (2.46mm)

Parça Durumu

Active

Fabrika Tedarik Süresi

2 Weeks

Empedans

75Ohm

Shield Material

Copper, Tinned

Vop Velocity Of Propagation

78

Conductor Strand

7 Strands / 38 AWG

Çalışma Sıcaklığı

-40°C~60°C

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Cable Types

Coaxial

Conductor Material

Copper, Tinned

Dielectric Diameter

0.058 (1.47mm)

Connector Support Type

WIRE AND CABLE

Shield Coverage

90%

Jacket Color

Black

Dielectric Material

Foam High Density Polyethylene (FHDPE)

Yayın Yılı

2012

Nem Hassasiyeti (MSL)

1 (Unlimited)
