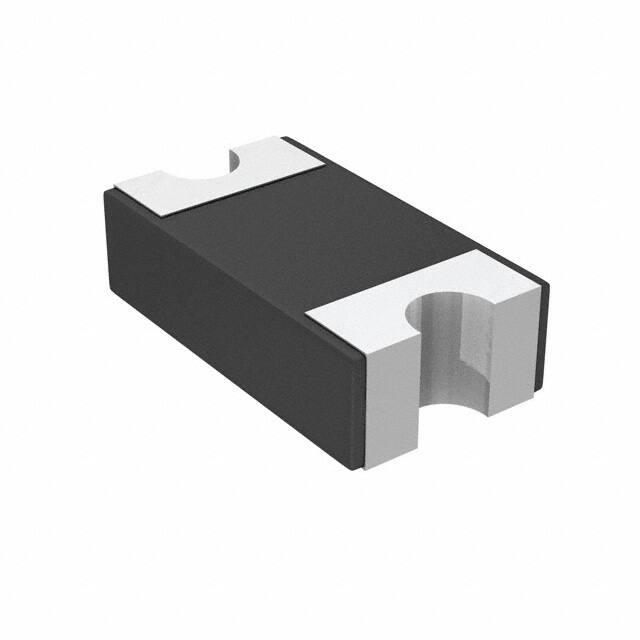

SD1206T040S1R0

Specifications

Voltage Forward Vf Max If

500mV @ 1A

Current Average Rectified Io

1A DC

Speed

Fast Recovery =< 500ns, > 200mA (Io)

ECCN Kodu

EAR99

Reach Svhc

No SVHC

Montaj

Surface Mount

Min. Çalışma Sıcaklığı

-55°C

Operating Temperature Junction

-55°C~125°C

Max Reverse Leakage Current

200μA

Temel Parça No

SD1206T040S1R0

Max Reverse Voltage Dc

40V

Average Rectified Current

1A

Additional Feature

LOW POWER LOSS

Element Configuration

Single

Current Reverse Leakage Vr

200μA @ 40V

RoHS Durumu

ROHS3 Compliant

Case Code Imperial

1206

Pin Sayısı

2

Forward Current

1A

Ambalaj

Tape & Reel (TR)

Radyasyon Dayanımı

No

Nem Hassasiyeti (MSL)

1 (Unlimited)

Maks. Çalışma Sıcaklığı

125°C

Kılıf / Paket

1206 (3216 Metric)

Peak Reverse Current

200μA

Yayın Yılı

2013

Output Currentmax

1A

Diode Element Material

SILICON

Case Code Metric

3216

Number Of Elements

1

Diode Type

Schottky

Max Repetitive Reverse Voltage Vrrm

40V

Peak Nonrepetitive Surge Current

20A

Terminal Sayısı

2

Terminal Pozisyonu

DUAL

Max Forward Surge Current Ifsm

20A

Parça Durumu

Active

Max Surge Current

20A

Forward Voltage

500mV

Montaj Tipi

Surface Mount
