Volume pricing
- 1+ pcs$0.32
- 10+ pcs$0.30
- 100+ pcs$0.29
- 500+ pcs$0.27
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

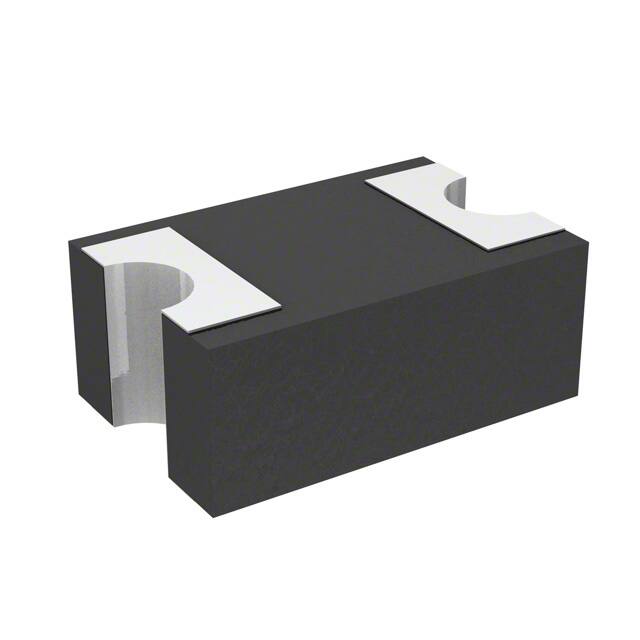

Specifications
- Montaj
- Surface Mount
- Min. Çalışma Sıcaklığı
- -55°C
- Operating Temperature Junction
- -55°C~125°C
- Temel Parça No
- SD0805S04
- Max Reverse Leakage Current
- 100μA
- Voltage Forward Vf Max If
- 480mV @ 500mA
- Current Average Rectified Io
- 500mA DC
- Reach Svhc
- No SVHC
- ECCN Kodu
- EAR99
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- RoHS Durumu
- ROHS3 Compliant
- Pin Sayısı
- 2
- Case Code Imperial
- 0805
- Ambalaj
- Tape & Reel (TR)
- Forward Current
- 500mA
- Max Reverse Voltage Dc
- 40V
- Average Rectified Current
- 500mA
- Current Reverse Leakage Vr
- 100μA @ 40V
- Element Configuration
- Single
- Additional Feature
- LOW POWER LOSS
- Yayın Yılı
- 2013
- Diode Element Material
- SILICON
- Case Code Metric
- 2012
- Kılıf / Paket
- 0805 (2012 Metric)
- Radyasyon Dayanımı
- No
- Maks. Çalışma Sıcaklığı
- 125°C
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Peak Reverse Current
- 100μA
- Forward Voltage
- 480mV
- Max Surge Current
- 5A
- Parça Durumu
- Active
- Montaj Tipi
- Surface Mount
- Fabrika Tedarik Süresi
- 16 Weeks
- Terminal Sayısı
- 2
- Peak Nonrepetitive Surge Current
- 5A
- Max Repetitive Reverse Voltage Vrrm
- 40V
- Number Of Elements
- 1
- Diode Type
- Schottky
- Terminal Pozisyonu
- DUAL
- Max Forward Surge Current Ifsm
- 5A
