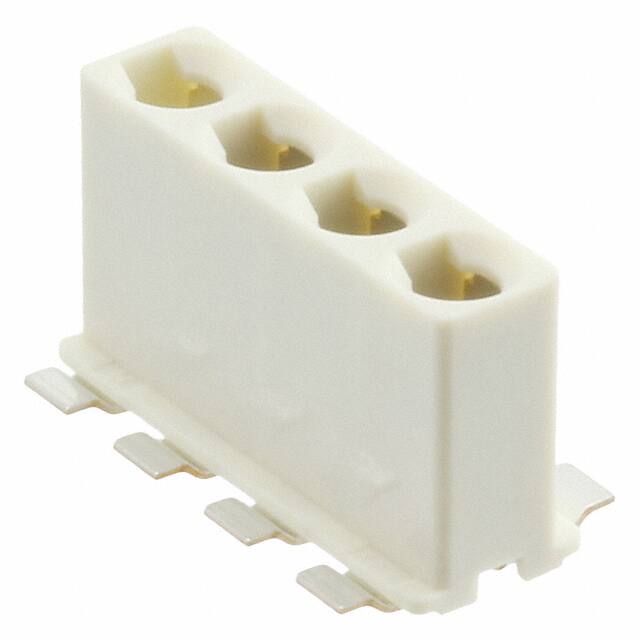

009296004503906

Specifications

Wire Gauge Min

18 AWG

Connector Type

Individual Wires

Renk

White

Number Of Positions Loaded

All

Tip

Poke-Home

Birim Ağırlık

0.086008 oz

Number Of Pcb Rows

2

Wire Gauge

18-26 AWG

Max Frequency

320 Hz

Ambalaj

Tape & Reel (TR)

Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Gender

Receptacle

Nominal Gerilim

200V

Number Of Conductors

ONE

Termination Method

Solder

Paket

Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;

Nominal Input Voltage Ac

240 VAC

Nem Hassasiyeti (MSL)

3 (168 Hours)

Body Length Or Diameter

0.63 inch

Terminal

SMD/SMT

Total Number Of Contacts

4

Cable Pitch

0.157 4.00mm

Akım Değeri

7A

Cable Termination

Poke-In

Pitch

4mm

Maks. Çalışma Sıcaklığı

125°C

Voltage Rating

200 V

Min. Çalışma Sıcaklığı

-40°C

Mounting Angle

Straight

Reference Standard

UL

Pozisyon Sayısı

4

Fabrika Paket Adedi

400

Moisture Sensitive

Yes

Contact Plating

Tin

Pin Sayısı

4

Applications

Wire-to-Board

Minimum Operating Temperature

- 40 C

Durability

5 Cycles

Housing Color

White
