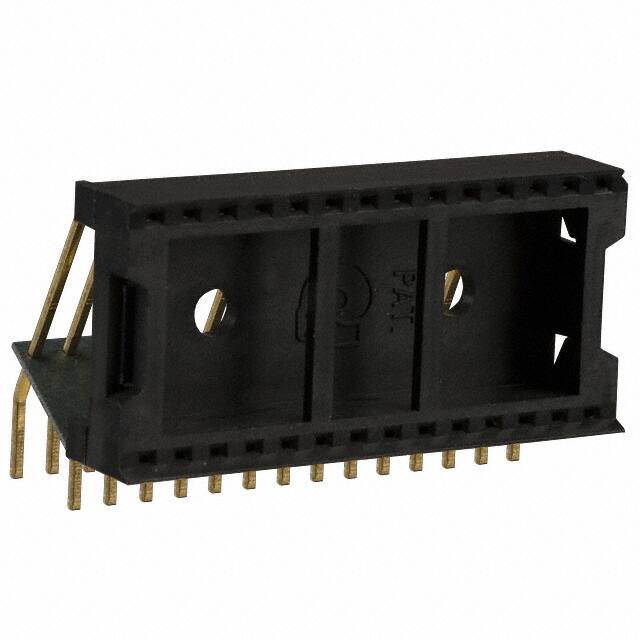

28-6823-90

Specifications

Additional Feature

STANDARD: UL 94V-0

Number Of Positions Or Pins Grid

28 (2 x 14)

Pin Sayısı

28

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole, Right Angle, Horizontal

Genişlik

7.62mm

Number Of Contacts

28

Body Breadth

0.7 inch

ECCN Kodu

EAR99

Pcb Contact Pattern

RECTANGULAR

Contact Material Post

Phosphor Bronze

Termination Post Length

0.145 3.68mm

Terminal

Solder

Mating Contact Pitch

0.1 inch

Lead Pitch

2.54mm

Seri

Vertisockets™ 800

Özellikler

Closed Frame

Pitch Post

0.100 2.54mm

Yükseklik

17.5mm

Body Depth

0.68 inch

Contact Finish Mating

Gold

Terminal Adımı

2.54mm

Yayın Yılı

2007

Row Spacing

7.62 mm

Contact Finish Thickness Post

10.0μin 0.25μm

Kurşunsuz

Lead Free

RoHS Durumu

ROHS3 Compliant

Uzunluk

36.8mm

Contact Material Mating

Phosphor Bronze

Contact Style

SQ PIN-SKT

Montaj

Horizontal, Through Hole

Contact Finish Thickness Mating

10.0μin 0.25μm

Ambalaj

Bulk

Housing Material

Polyamide (PA46), Nylon 4/6

Pitch Mating

0.100 2.54mm

Reach Svhc

No SVHC

Contact Materials

Bronze

Tip

DIP, 0.6 (15.24mm) Row Spacing

Parça Durumu

Active

Fabrika Tedarik Süresi

7 Weeks
