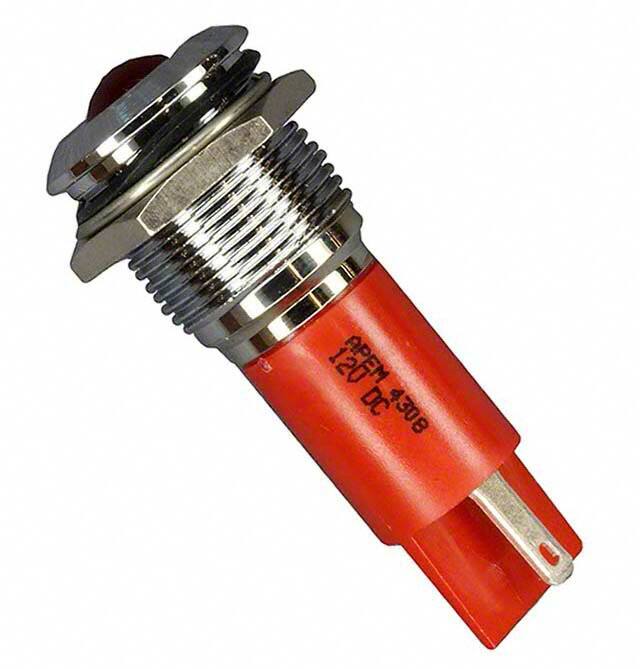

Specifications
- Kurşunsuz Kodu
- yes
- Additional Feature
- UL RECOGNIZED
- Packing Method
- BULK
- Luminous Intensity
- 80 mcd
- Seri
- Q Series
- Yüzey Montaj
- NO
- Mounting Feature
- PANEL MOUNT
- Operating Temperature Max
- 85°C
- Uzunluk
- 48.5mm
- Panel Cutout Shape
- Round
- Ratings
- DC
- Millicandela Rating
- 100mcd
- Terminal
- Quick Connect
- HTS Kodu
- 8541.40.20.00
- Forward Voltage
- 2V
- Parça Durumu
- Active
- Forward Current
- 20mA
- Terminal Sayısı
- 2
- Panel Cutout Dimensions
- 0.63 (16.00mm)
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Fonksiyon Sayısı
- 1
- Terminal Stili
- Quick Connect - 0.110 (2.8mm)
- RoHS Durumu
- ROHS3 Compliant
- Operating Supply Voltage
- 12V
- Viewing Angle
- 100°
- Fabrika Tedarik Süresi
- 13 Weeks
- Lens Size
- 10.00mm Dia
- Lamp Color
- Red
- Reach Svhc
- No SVHC
- Kılıf / Paket
- Metal
- Material
- Brass
- Life Hours
- 100000 hours
- Operating Temperature Min
- -40°C
- Lens Style
- Round with Domed Top
- Configuration
- SINGLE
- Ingress Protection
- IP67
- Overall Height
- 4.75mm
- Lens Transparency
- Diffused
- Tip
- LED
