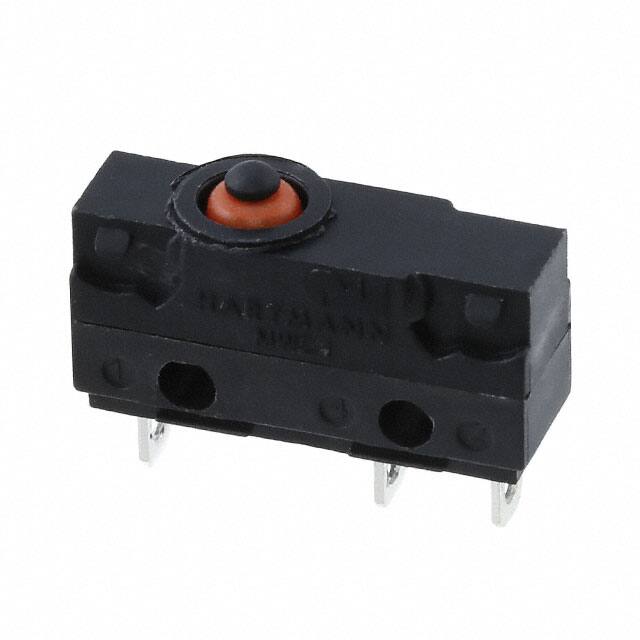

Specifications
- Mechanical Life
- 1,000,000 Cycles
- Length Termination
- 0.142 inch
- Pretravel
- 0.030 (0.8mm)
- Actuator Type
- Round (Pin Plunger)
- Body Height
- 9.5504mm
- Contact Voltageacmax
- 250V
- Çalışma Sıcaklığı
- -40°C~85°C
- Switch Function
- On-Mom
- Overtravel
- 0.015 (0.4mm)
- Contact Ac Max Rating R Load
- 5A@250VAC
- Fabrika Tedarik Süresi
- 10 Weeks
- ECCN Kodu
- EAR99
- Parça Durumu
- Active
- Voltage Rated Ac
- 125V
- Terminal Material
- BRASS
- Terminal
- Solder
- Ambalaj
- Bulk
- Contact Currentacmax
- 5A
- Current Rating Amps
- 5A AC
- Electricallife
- 50,000 Cycles
- Akım Değeri
- 5A
- Actuator Length
- 0.075 inch
- Housing Material
- POLYAMIDE
- RoHS Durumu
- ROHS3 Compliant
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- Operating Force
- 153gf
- Seri
- MWZ
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Differential Travel
- 0.004 (0.1mm)
- Circuit
- SPDT
- Body Breadth
- 6.4008 mm
- Montaj Tipi
- Chassis Mount
- Actuator Material
- POLYBUTYLENE TEREPHTHALATE
- Body Length Or Diameter
- 19.812mm
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Terminal Stili
- Solder Lug
- Montaj
- Chassis Mount
- Ratings
- Dust Tight, IP67, Waterproof
- Contact Timing
- SNAP ACTION
- Operating Position
- 0.325 (8.25mm)
