Specifications
- Çalışma Sıcaklığı
- -10°C~60°C
- HTS Kodu
- 8536.50.90.50
- Actuator Length
- 8.00mm
- Contact Current Rating
- 300mA
- Contact Dc Max Rating R Load
- .02A@20VDC
- Voltage Rated Dc
- 20V
- Switch Function
- On-On
- Switch Travel
- 2.00mm
- Body Length Or Diameter
- 15mm
- Housing Material
- STEEL
- Dielectric Withstanding Voltage
- 500VRMS V
- Voltage Rated Ac
- 20V
- Contact Dc Max Power Rating R Load
- 0.4VA@20VDC
- Length Termination
- 0.118 inch
- Body Breadth
- 9.4 mm
- Contact Finish
- Gold
- Body Height
- 10mm
- Insulation Resistance
- 100000000Ohm
- Actuator Type
- Standard
- Contact Currentdcmax
- 0.02A
- Sealing
- EPOXY TERMINAL SEALED
- Pozisyon Sayısı
- 2
- Contact Ac Max Rating R Load
- .02A@20VAC
- Contact Timing
- Not Specified
- Terminal Stili
- PC Pin
- Actuator Material
- Thermoplastic

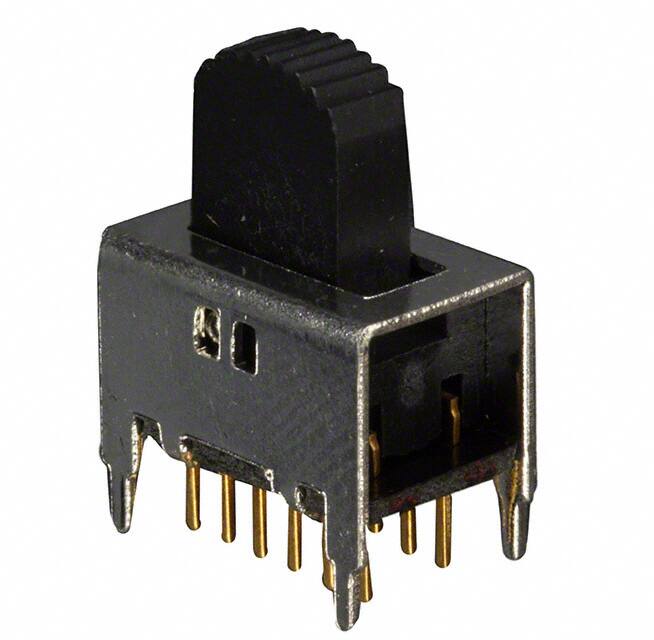

- Switch Type
- SLIDE SWITCH
- Contact Resistance
- 0.02mOhm
- Contact Currentacmax
- 0.02A
- Circuit
- 4PDT
- Seri
- MSS
- Pcb Hole Count
- 16
- Özellikler
- Epoxy Sealed Terminals
- JESD-609 Kodu
- e4
- Montaj
- Through Hole
- Electricallife
- 10,000 Cycles
- Montaj Tipi
- Through Hole
- Ambalaj
- Bulk
- Washability
- SOLVENT
- Current Rating Amps
- 0.4VA AC/DC
