Volume pricing
- 1+ pcs$0.98
- 10+ pcs$0.92
- 100+ pcs$0.87
- 500+ pcs$0.82
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Voltage Rated Dc
- 6V
- HTS Kodu
- 8536.50.90.65
- Terminal Stili
- PC Pin
- Contact Timing
- Not Specified
- Akım Değeri
- 300mA

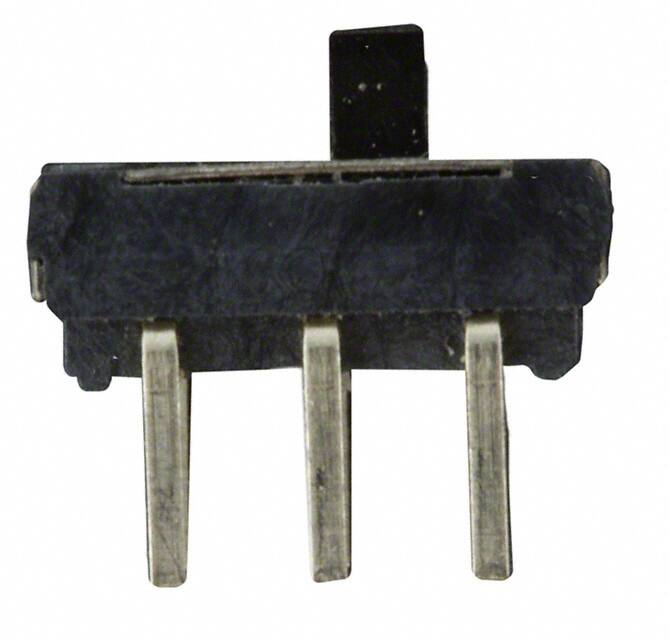

- Switch Type
- SLIDE SWITCH
- Montaj Tipi
- Through Hole
- Washability
- PARTIAL
- Solderability
- WAVE
- Contact Resistance
- 0.07mOhm
- Sealing
- MOLDED
- Additional Feature
- LOW PROFILE
- Actuator Type
- Standard
- Contact Current Rating
- 300mA
- Pcb Hole Count
- 6
- Montaj
- Through Hole
- Voltage Rated Ac
- 6V
- Terminal
- PC Pin
- Contact Currentdcmax
- 0.3A
- Electricallife
- 10,000 Cycles
- Fabrika Tedarik Süresi
- 8 Weeks
- Body Breadth
- 3.3 mm
- Contact Finish
- Silver
- Circuit
- DPDT
- Body Height
- 3.5mm
- Pozisyon Sayısı
- 2
- ECCN Kodu
- EAR99
- Contact Dc Max Rating R Load
- .3A@6VDC
- JESD-609 Kodu
- e4
- Length Termination
- 0.118 inch
- Actuator Length
- 2.00mm
- Parça Durumu
- Active
- Çalışma Sıcaklığı
- -10°C~60°C
- Body Length Or Diameter
- 9mm
- Seri
- MS
- Housing Material
- STAINLESS STEEL
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- RoHS Durumu
- ROHS3 Compliant
- Contact Voltagedcmax
- 6V
- Ambalaj
- Bulk
