Volume pricing
- 1+ pcs$0.30
- 10+ pcs$0.28
- 100+ pcs$0.27
- 500+ pcs$0.25
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

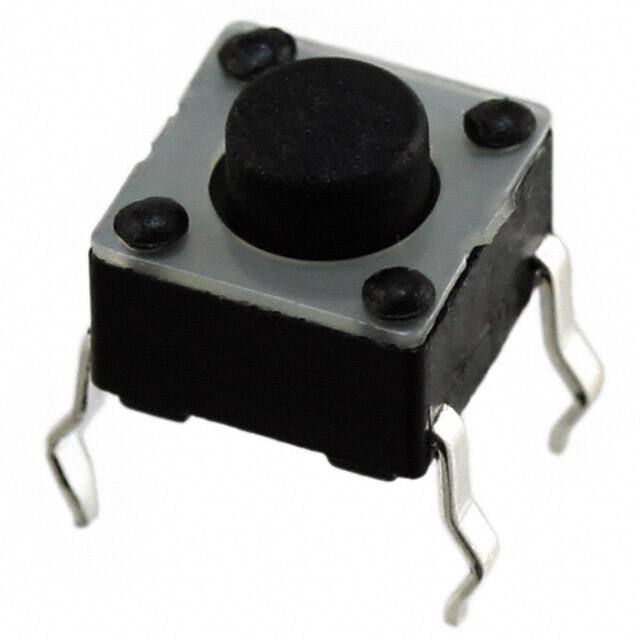

Specifications
- Number Of Switches
- 1
- End Contact Material
- BRASS
- Switch Type
- KEYPAD SWITCH
- Outline
- 6.00mm x 6.00mm
- Mechanical Life
- 100,000 Cycles
- Çalışma Sıcaklığı
- -20°C~70°C
- Actuator Height Off Pcb Vertical
- 5.00mm
- JESD-609 Kodu
- e4
- Dielectric Withstanding Voltage
- 250VAC V
- RoHS Durumu
- ROHS3 Compliant
- Electricallife
- 100000 Cycle(s)
- Pcb Hole Count
- 5
- Switch Travel
- 0.25mm
- Seri
- MJTP
- Center Contact Plating
- SILVER
- Actuator Material
- Thermoplastic
- End Contact Plating
- SILVER
- Yüzey Montaj
- NO
- Actuatorcolor
- BLACK
- Circuit
- SPST-NO
- Contact Bounce Timemax
- 10ms
- Actuator Orientation
- Top Actuated
- Terminal Stili
- PC Pin
- Contact Resistance
- 0.1mOhm
- Housing Material
- STAINLESS STEEL
- Length Termination
- 0.138 inch
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Terminal Material
- BRASS
- HTS Kodu
- 8536.50.90.40
- Body Breadth
- 6 mm
- Operating Force
- 160gf
- Insulation Resistance
- 100000000Ohm
- Contact Dc Max Rating R Load
- .05A@12VDC
- Terminal Kaplaması
- Silver (Ag)
- Sealing
- MOLDED
- Özellikler
- Tactile Feedback
- Montaj Tipi
- Through Hole
- Illumination
- Non-Illuminated
- Center Contact Material
- PHOSPHOR BRONZE
- Body Color
- BLACK
