Volume pricing
- 1+ pcs$0.41
- 10+ pcs$0.38
- 100+ pcs$0.36
- 500+ pcs$0.34
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

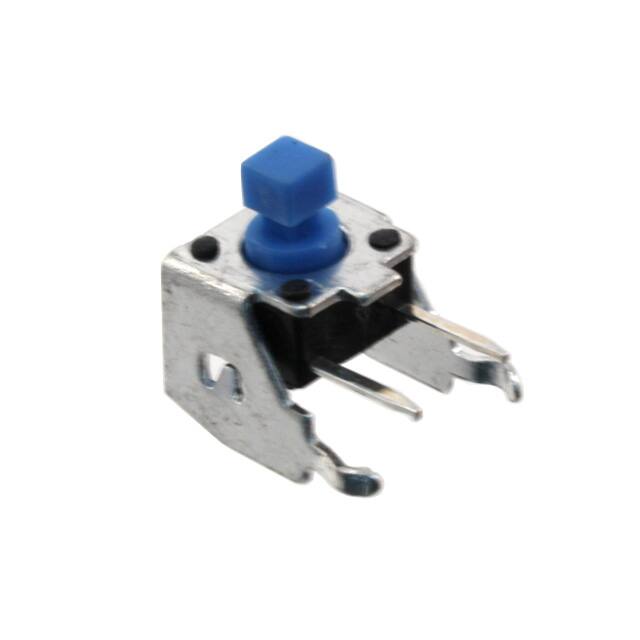

Specifications
- Contact Resistance
- 100mOhm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Length Termination
- 0.138 inch
- Montaj
- Through Hole
- Max Current Rating
- 50mA
- Terminal Material
- BRASS
- Body Breadth
- 7.239 mm
- Operating Force
- 160gf
- Depth
- 10.35mm
- HTS Kodu
- 8536.50.90.40
- Actuator Material
- Thermoplastic
- Actuatorcolor
- BLUE
- Circuit
- SPST-NO
- Contact Bounce Timemax
- 10ms
- Actuator Orientation
- Side Actuated
- Terminal Stili
- PC Pin
- Max Voltage Rating Dc
- 12V
- Electricallife
- 100000 cycles
- RoHS Durumu
- ROHS3 Compliant
- Actuator Length Right Angle
- 6.35mm
- Contact Plating
- Silver
- Pcb Hole Count
- 4
- Switch Travel
- 0.25mm
- Seri
- MJTP
- Outline
- 7.40mm x 7.20mm
- Number Of Switches
- 1
- Switch Type
- KEYPAD SWITCH
- Voltage Rated Dc
- 12V
- JESD-609 Kodu
- e4
- Çalışma Sıcaklığı
- -20°C~70°C
- Mechanical Life
- 100,000 Cycles
- Dielectric Withstanding Voltage
- 250VAC V
- Throw Configuration
- SPST
- Body Length Or Diameter
- 7.4mm
- Solderability
- WAVE
- ECCN Kodu
- EAR99
- Contact Currentdcmax
- 0.05A
- Fabrika Tedarik Süresi
- 6 Weeks
- Body Height
- 7.2mm
- Contact Rating Voltage
- 0.05A @ 12VDC
