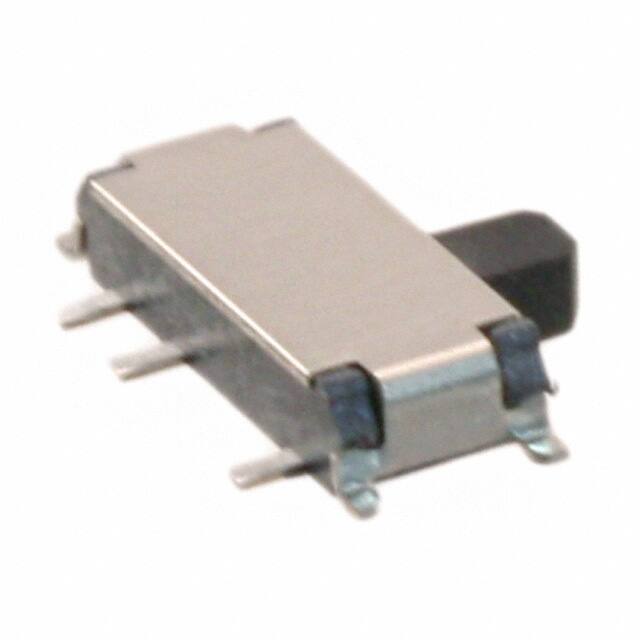

MA12R

Specifications

Insulation Resistance

100000000Ohm

Switch Type

SLIDE SWITCH

Contact Current Rating

300mA

Current Rating Amps

300mA DC

Actuator Material

Liquid Crystal Polymer (LCP)

Contact Finish

Silver

Contact Materials

Beryllium Copper

Electricallife

10,000 Cycles

Circuit

SPDT

Contact Resistance

70mOhm

Voltage Rated Ac

4V

Additional Feature

LOW PROFILE

Voltage Rated Dc

4V

HTS Kodu

8536.50.90.50

Contact Dc Max Rating R Load

.3A@4VDC

Akım Değeri

300mA

JESD-609 Kodu

e4

ECCN Kodu

EAR99

Dielectric Withstanding Voltage

100VAC V

Actuator Type

Standard

Pcb Hole Count

2

Ambalaj

Tube

Çalışma Sıcaklığı

-10°C~60°C

Montaj

Surface Mount

Terminal

Gull Wing

Switch Function

On-On

Body Height

1.4mm

Body Length Or Diameter

6.7mm

Parça Durumu

Obsolete

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Surface Mount, Right Angle

Max Voltage Rating Dc

4V

Actuator Length

1.50mm

Contact Currentdcmax

0.3A

Terminal Stili

Gull Wing

Operating Force

200gf

Body Breadth

2.6 mm

Contact Timing

Not Specified

Kılıf / Paket

SMD/SMT
