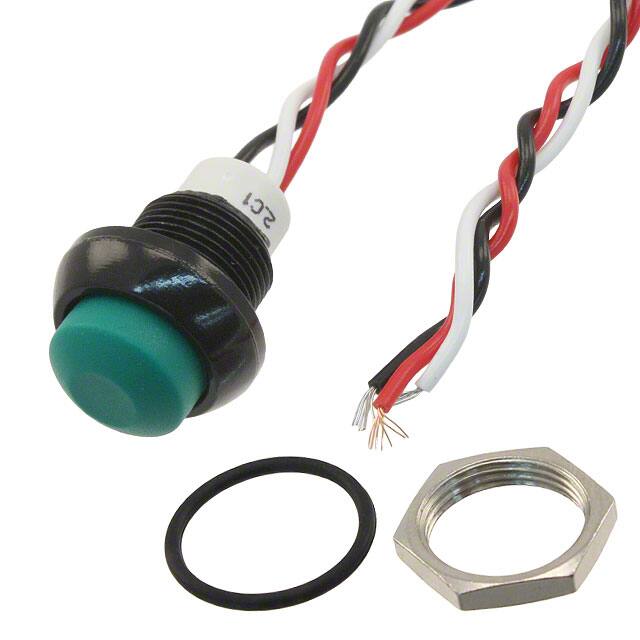

IHSH36F3

Specifications

Operating Force

612gf

Contact Dc Max Rating R Load

0.05A@24VDC

Terminal

Wire Leads

Voltage Rated Dc

28V

Supply Current

Varies by Supply Voltage

Akım Değeri

50mA

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tray

Illumination Type

Illuminated

Travel Range

1.7mm

Çalışma Sıcaklığı

-40°C~85°C

Ratings

Dust Tight, IP67, Waterproof

Voltage Rated Ac

28V

Actuatorcolor

Green

Montaj

Front, Panel

Max Output Voltage

28V

Actuator Length

0.381 inch

Switch Type

PUSHBUTTON SWITCH

Contact Voltagedcmax

24V

Body Color

Black

Terminal Stili

Wire Leads

Besleme Gerilimi

3.5V~24VDC

Fabrika Tedarik Süresi

9 Weeks

ECCN Kodu

EAR99

Actuator Material

POLYAMIDE

Actuator Travel

1.778 mm

Contact Currentdcmax

0.05A

Montaj Tipi

Panel Mount, Front

Parça Durumu

Active

Ingress Protection

IP67 - Dust Tight, Waterproof

Housing Material

PBT

Actuator Type

Round Button

Max Output Current

50mA

Switch Function

Off-Mom

Circuit

Single

Seri

IH

Throw Configuration

SPST
