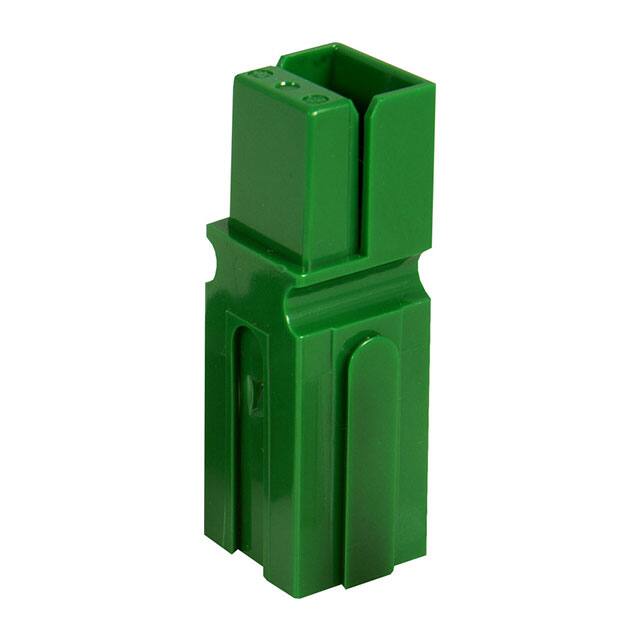

5916G6-BK

Specifications

Fastening Type

Spring Retention

Fabrika Tedarik Süresi

3 Weeks

Nominal Gerilim

600V

Mil Conformance

NO

Renk

Green

Montaj Tipi

Free Hanging (In-Line)

Seri

Powerpole®

Rated Voltageac

600V

Rated Voltagedc

600V

RoHS Durumu

ROHS3 Compliant

Onay Kuruluşu

CSA; CUL; UL

Material Insulation

Polycarbonate (PC)

Iec Conformance

NO

Wirecable Diameter

11.0998 mm

Pozisyon Sayısı

1

Connector Type

Non-Gendered

Parça Durumu

Active

Çalışma Sıcaklığı

-20°C~105°C

Note

Contacts Not Included

Current Rating Amps

120A

Özellikler

Stackable

Yayın Yılı

2005

Wire Size Max

6 AWG

Assembly Item Name

HOUSING

Ambalaj

Bulk

Flammability Rating

UL94 V-0

Connector Support Type

CONNECTOR ACCESSORY

Contact Termination

Crimp

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO
