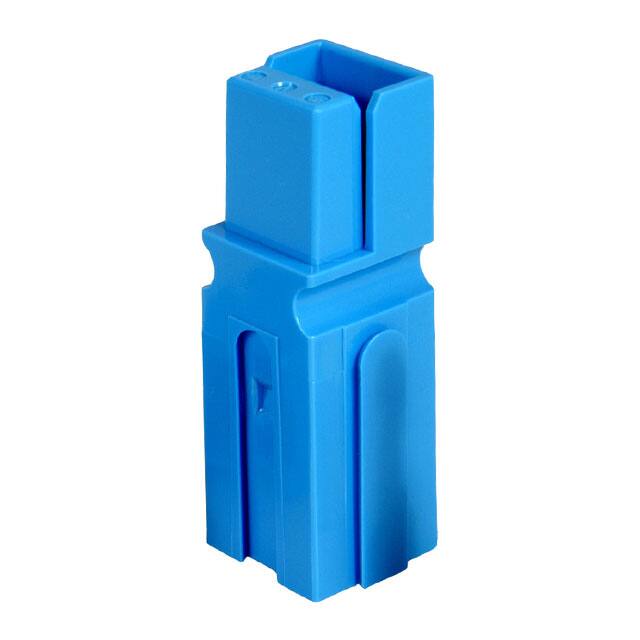

5916

Specifications

Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Termination

Crimp

Ambalaj

Bulk

Reach Svhc

No SVHC

Akım Değeri

75A

Empty Shell

YES

Wire Gauge Min

6 AWG

ECCN Kodu

EAR99

Din Conformance

NO

Mixed Contacts

NO

Current Rating Amps

120A

Contact Finish Mating

NOT SPECIFIED

Max Current Rating

75A

Orientation

Straight

Note

Contacts Not Included

Filter Feature

NO

Voltage Rated Dc

75V

Uzunluk

47.9mm

Gender

Receptacle

Total Number Of Contacts

1

Ul Flammability Code

94V-0

Max Voltage Rating Ac

600V

Özellikler

Stackable

Material Insulation

Polycarbonate (PC)

RoHS Durumu

ROHS3 Compliant

Option

GENERAL PURPOSE

Contact Materials

NOT SPECIFIED

Iec Conformance

NO

Seri

Powerpole®

Parça Durumu

Active

Çalışma Sıcaklığı

-20°C~105°C

Pozisyon Sayısı

1

Connector Type

Non-Gendered

Contact Plating

Silver

HTS Kodu

8536.69.40.30

Fastening Type

Spring Retention

Wire Gauge Max

16 AWG

Montaj Tipi

Free Hanging (In-Line)

Depth

15.9mm
