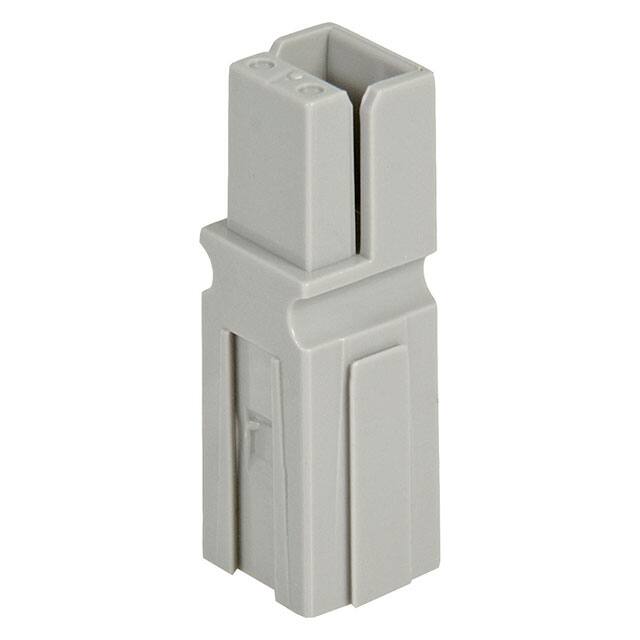

1327G18

Specifications

Contact Gender

HERMAPHRODITIC

Fabrika Tedarik Süresi

3 Weeks

Uzunluk

7.9mm

Mixed Contacts

NO

Contact Termination

Crimp

Wire Gauge Max

20 AWG

Nominal Gerilim

600V

HTS Kodu

8536.69.40.30

Çalışma Sıcaklığı

-20°C~105°C

Contact Plating

Silver, Tin

ECCN Kodu

EAR99

Contact Finish Mating

NOT SPECIFIED

Özellikler

Stackable

Depth

24.6mm

Housing Material

Polycarbonate

Din Conformance

NO

Montaj Tipi

Free Hanging (In-Line)

Ul Flammability Code

94V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

Non-Gendered

Filter Feature

NO

Mil Conformance

NO

RoHS Durumu

ROHS3 Compliant

Contact Materials

NOT SPECIFIED

Housing Color

Grey

Empty Shell

YES

Iec Conformance

NO

Note

Contacts Not Included

Orientation

Straight

Yayın Yılı

2005

Option

GENERAL PURPOSE

Total Number Of Contacts

1

Material Insulation

Polycarbonate (PC)

Current Rating Amps

55A

Renk

Gray

Fastening Type

Spring Retention

Wire Gauge Min

16 AWG

Pozisyon Sayısı

1

Parça Durumu

Active

Seri

Powerpole®
