Specifications
- Interface
- Logic, UART
- Max Junction Temperature Tj
- 125°C
- Supply Voltagemax Vsup
- 36V
- JESD-609 Kodu
- e3
- Applications
- General Purpose
- Motor Type
- Stepper
- Terminal Pozisyonu
- QUAD
- Function
- Driver - Fully Integrated, Control and Power Stage
- Genişlik
- 5mm
- Kılıf / Paket
- 28-VFQFN Exposed Pad
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Temel Ürün No
- TMC2208
- Terminal Kaplaması
- Matte Tin (Sn)
- Yükseklik
- 900μm
- Montaj Tipi
- Surface Mount
- Step Resolution
- 1 ~ 1/256
- Motor Type Stepper
- Bipolar
- Besleme Gerilimi
- 24V
- Çıkış Akımı
- 1.2A
- Output Configuration
- Half Bridge (4)
- Besleme Gerilimi
- 5.5V ~ 36V
- Terminal Formu
- NO LEAD
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Voltage Load
- 5.5V ~ 36V
- Uzunluk
- 5mm
- Output Voltage
- 5V
- Terminal Sayısı
- 28
- Jesd30 Code
- S-XQCC-N28
- Tepe Reflow Sıcaklığı (°C)
- 260
- Manufacturer Package Identifier

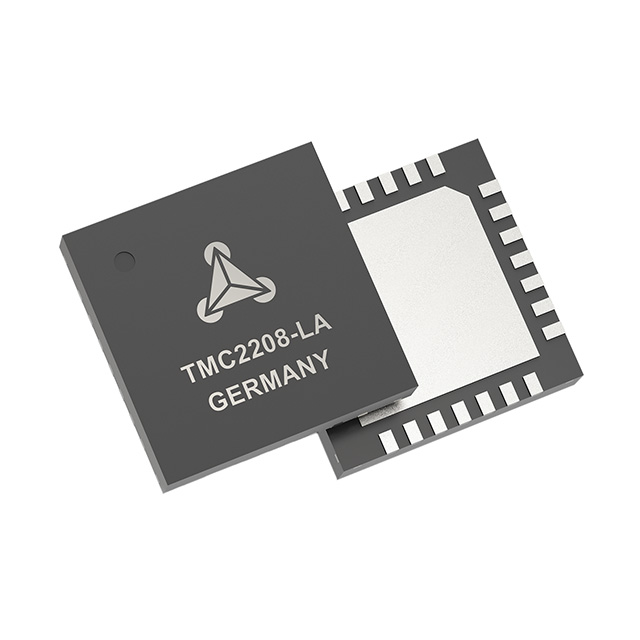

- TMC2208-LA-T
- Tedarikçi Cihaz Paketi
- 28-QFN (5x5)
- Çalışma Sıcaklığı
- -40°C ~ 125°C (TJ)
- Parça Durumu
- Active
- Ambalaj
- Tape & Reel (TR)
- RoHS Durumu
- ROHS3 Compliant
- Yüzey Montaj
- YES
- Yayın Yılı
- 2016
- Fabrika Tedarik Süresi
- 8 Weeks
- Terminal Adımı
- 0.5mm
- Kurşunsuz Kodu
- yes
