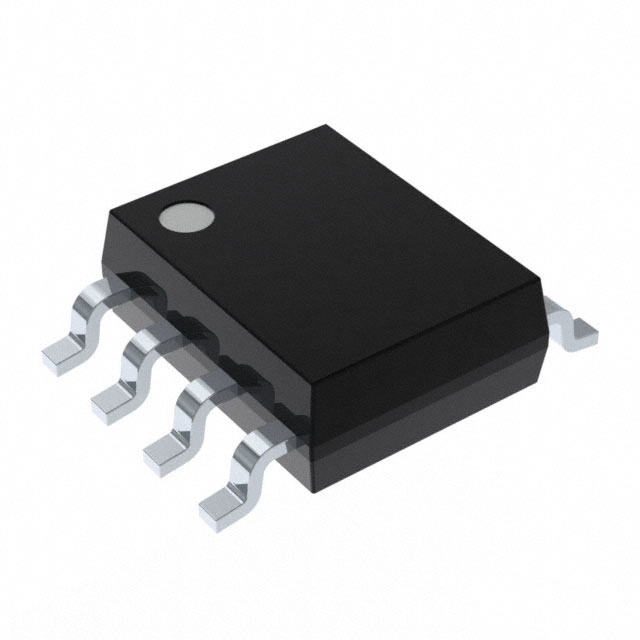

MAX22245BAWA

Specifications

Data Rate

25Mbps

Ürün Tipi

Digital Isolators

Propagation Delay Tplh Tphl Max

30.7ns, 32.1ns

Parça Durumu

Active

Ürün Durumu

Active

Tedarikçi Cihaz Paketi

8-SOIC

Maximum Fall Time

3 ns

Plate Thickness

4mm

Montaj Tipi

Surface Mount

Voltage Isolation

5000Vrms

Besleme Gerilimi

1.71V ~ 5.5V

Seri

MAX22245/MAX22246

Heatsink Shape

K

Type Of Heatsink

extruded

Operating Supply Current

2.65 mA

Minimum Operating Temperature

- 40 C

Uzunluk

75mm

Gross Weight

700 g

Common Mode Transient Immunity Min

50kV/μs (Typ)

Material Finishing

anodized

Propagation Delay

28.8ns

Protocols Supported

CAN, RS232, RS485, RS-422

Channel Type

Unidirectional

Montaj Stili

SMD/SMT

Isolation Voltage

5000 Vrms

Paket

Tube

Polarity

Unidirectional

Material

aluminium

Maks. Çalışma Sıcaklığı

+ 125 C

Moisture Sensitive

Yes

2nd Connector Number Of Positions Loaded

SOT32

Maximum Rise Time

2.4 ns

Tip

CAN, RS232, RS422, RS485

Mounting

for back plate

Inputs Side1side2

2/0

Pulse Width Distortion

4 ns

Rise Fall Time Typ

0.8ns, 1ns (Max)

Kılıf / Paket

8-SOIC (0.295", 7.50mm Width)

Shutdown

No Shutdown

Supply Voltagemin

1.71 V
