ADG858BCPZ-REEL7

Specifications

Switch Time Ton Toff Max

27ns, 12ns

Tepe Reflow Süresi (maks. sn)

30

RoHS Durumu

ROHS3 Compliant

Switching

BREAK-BEFORE-MAKE

Max Supply Voltage

5.5V

Turn On Delay Time

50 ns

Onstate Resistance Max

720mOhm

Multiplexerdemultiplexer Circuit

2:2

Terminal Sayısı

16

Reach Svhc

No SVHC

Min Supply Voltage

1.8V

Switchon Timemax

59ns

Bandwidth

70MHz

Number Of Outputs

8

Fonksiyon Sayısı

4

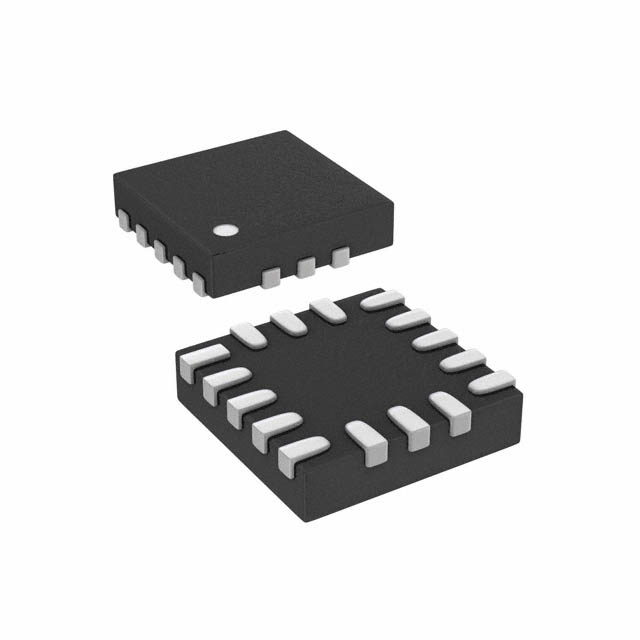

Kılıf / Paket

16-UFQFN, CSP

Çalışma Sıcaklığı

-40°C~85°C TA

Switchoff Timemax

15ns

Nem Hassasiyeti (MSL)

1 (Unlimited)

Onstate Resistance Matchnom

0.05Ohm

JESD-609 Kodu

e4

Number Of Channels

4

Lifecycle Status

PRODUCTION (Last Updated: 3 weeks ago)

Switch Circuit

SPDT

Qualification Status

Not Qualified

Direnç

1.35Ohm

Temel Parça No

ADG858

Fabrika Tedarik Süresi

8 Weeks

Parça Durumu

Active

Pin Sayısı

16

Maks. Oturma Yüksekliği

0.6mm

Number Of Circuits

2

Operating Supply Current

1μA

Channeltochannel Matching Ron

40m Ω

Kurşunsuz

Contains Lead

High Level Output Current

250mA

ECCN Kodu

EAR99

Terminal Pozisyonu

QUAD

Terminal Formu

NO LEAD

Contact Plating

Gold
