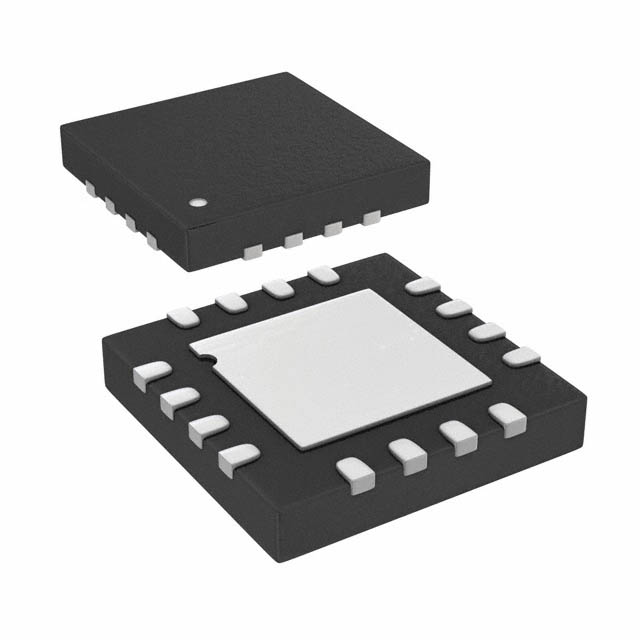

ADG5433BCPZ-REEL7

Specifications

Onstate Resistancemax Ron

15 Ω

Operating Temperaturemax

125 °C

Technology

CMOS

Terminal Adımı

0.65 mm

Neg Supply Voltagemin Vsup

-9 V

Package Code

HVQCCN

Supply Voltagemin Vsup

9 V

Moisture Sensitivity Levels

NOT APPLICABLE

Üretici Parça No

ADG5433BCPZ-REEL7

Analog Ic Other Type

SPDT

Operating Temperaturemin

-40 °C

Onstate Resistance Matchnom

0.3 Ω

Temperature Grade

AUTOMOTIVE

Parça Durumu

Active

Switchoff Timemax

140 ns

Part Life Cycle Code

Active

Risk Rank

5.56

Supply Voltagemax Vsup

22 V

Package Style

CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

Temel Ürün No

ADG5433

Package Description

HVQCCN,

Neg Supply Voltagemax Vsup

-22 V

Part Package Code

QFN

Pin Sayısı

16

Terminal Kaplaması

MATTE TIN

Fonksiyon Sayısı

3

Rohs Code

Yes

Genişlik

4 mm

Switchon Timemax

274 ns

Neg Supply Voltagenom Vsup

-15 V

Yüzey Montaj

YES

Ambalaj

Tape & Reel (TR)

Uzunluk

4 mm

Kurşunsuz Kodu

Yes

Number Of Channels

1

Offstate Isolationnom

60 dB

Jesd30 Code

S-XQCC-N16

Supply Voltagenom Vsup

15 V

Terminal Pozisyonu

QUAD

Package Body Material

UNSPECIFIED
