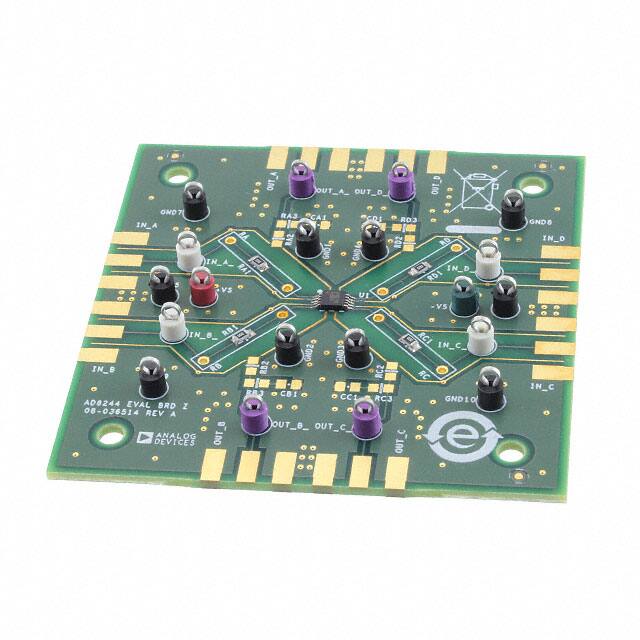

AD8244-EVALZ

Specifications

Ambalaj

Box

Kurşunsuz

Contains Lead

Evaluation Kit

Yes

Çıkış Tipi

Single-Ended, Rail-to-Rail

Utilized Ic Part

AD8244

Input Offset Voltage Vos

350μV

Input Capacitance

3.3pF

Parça Durumu

Active

Current Supply Main Ic

180μA

Gain Bandwidth Product

2MHz

Nem Hassasiyeti (MSL)

1 (Unlimited)

Nominal Supply Current

2.5mA

Board Type

Fully Populated

Amplifier Type

J-FET

RoHS Durumu

ROHS3 Compliant

Maks. Çalışma Sıcaklığı

85°C

Supplied Contents

Board(s)

Montaj

PCB

Output Current Per Channel

8mA

Settling Time

18 μs

Channels Per Ic

4 - Quad

3db Bandwidth

3MHz

Voltage Supply Singledual

3V~36V ±1.5V~18V

Pin Sayısı

0

Power Supply Rejection Ratio Psrr

90dB

Min. Çalışma Sıcaklığı

-40°C

Temel Parça No

AD8244

Common Mode Rejection Ratio

80 dB

Lifecycle Status

PRODUCTION (Last Updated: 2 weeks ago)

Slew Rate

0.8V/μs

Quiescent Current

180μA

Fabrika Tedarik Süresi

8 Weeks
