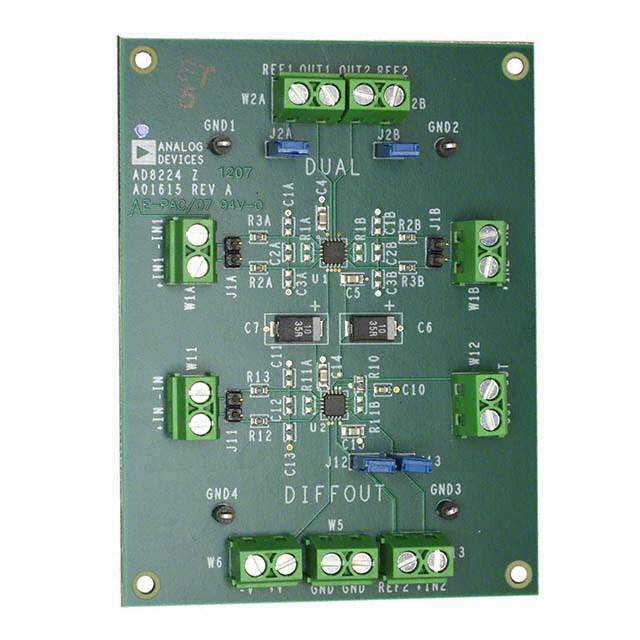

AD8224-EVALZ

Specifications

Board Type

Fully Populated

Nominal Supply Current

750μA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Current Supply Main Ic

750μA

Parça Durumu

Active

Utilized Ic Part

AD8224

Input Offset Voltage Vos

300μV

Çıkış Tipi

Single-Ended, Rail-to-Rail

Evaluation Kit

Yes

Kurşunsuz

Contains Lead

3db Bandwidth

1.5MHz

Channels Per Ic

2 - Dual

Output Current Per Channel

15mA

Supplied Contents

Board(s)

Maks. Çalışma Sıcaklığı

85°C

RoHS Durumu

Non-RoHS Compliant

Operating Supply Voltage

15V

Amplifier Type

Instrumentation

Temel Parça No

AD8224

Min. Çalışma Sıcaklığı

-40°C

Pin Sayısı

0

Voltage Supply Singledual

4.5V~36V ±2.25V~18V

Reach Svhc

No SVHC

Operating Supply Current

750μA

Fabrika Tedarik Süresi

8 Weeks

Slew Rate

2V/μs

Common Mode Rejection Ratio

86 dB

Lifecycle Status

PRODUCTION (Last Updated: 2 weeks ago)
