Specifications
- Max Power Dissipation
- 275mW
- RoHS Durumu
- Non-RoHS Compliant
- Conversion Timemax
- 40μs
- Linearity Errormax El
- 0.098%
- JESD-609 Kodu
- e0
- Analog Input Voltagemax
- 5V
- Besleme Gerilimi
- 5V
- Ratio Shadc
- 1:1
- Parça Durumu
- Active
- Resolution
- 1.25 B
- Integral Nonlinearity Inl
- 1 LSB
- Terminal Sayısı
- 18
- Qualification Status
- Not Qualified
- Analog Input Voltagemin
- -5V
- Output Bit Code
- BINARY, OFFSET BINARY
- Sampling Rate
- 0.04 MHz
- Voltage Supply Digital
- +4.5V~7V -12V~16.5V
- Pin Sayısı
- 18
- Lifecycle Status
- PRODUCTION (Last Updated: 5 days ago)
- Converter Type
- ADC, SUCCESSIVE APPROXIMATION
- Kurşunsuz Kodu
- no
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Temel Parça No
- AD571
- Genişlik
- 7.62mm
- Architecture
- SAR
- Montaj Tipi
- Through Hole
- Fabrika Tedarik Süresi
- 10 Weeks
- Pin Sayısı
- 18
- Kurşunsuz
- Contains Lead

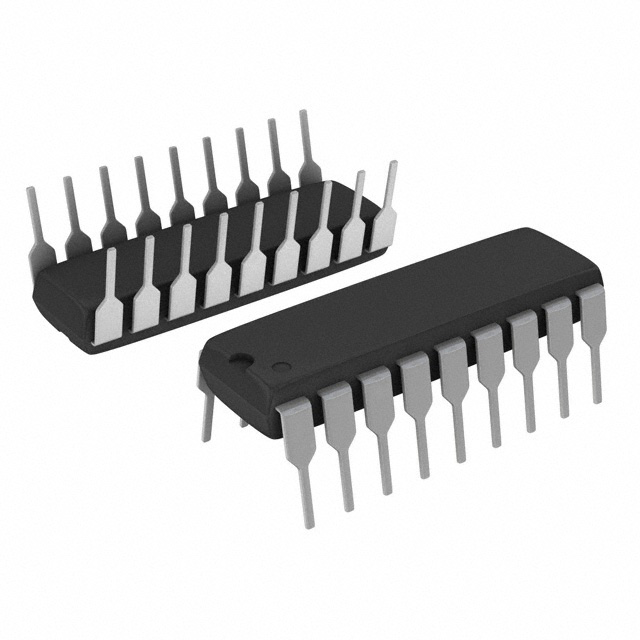

- Kılıf / Paket
- 18-CDIP (0.300, 7.62mm)
- Reference Type
- Internal
- Contact Plating
- Lead, Tin
- Terminal Adımı
- 2.54mm
- Ambalaj
- Tube
- Çalışma Sıcaklığı
- -55°C~125°C
- Giriş Tipi
- Single Ended
- Polarity
- Bipolar, Unipolar
- Negative Supply Voltagenom
- -15V
- Number Of Channels
- 1
- Configuration
- S/H-ADC
