Specifications
- Qualification Status
- Not Qualified
- Number Of Inputs
- 16
- Montaj Tipi
- Surface Mount
- Voltage Supply Analog
- 2.7V~5.25V
- Min Input Voltage
- 2.5V
- Data Interface
- Parallel
- Sample And Hold Track And Hold
- TRACK
- Ambalaj
- Tray
- Yüzey Montaj
- YES
- Reference Type
- External, Internal
- Voltage Supply Digital
- 2.7V~5.25V
- Number Of Ad Converters
- 1
- Terminal Pozisyonu
- BOTTOM
- Interface
- SPI
- Number Of Analog In Channels
- 16
- Configuration
- MUX-S/H-ADC
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)

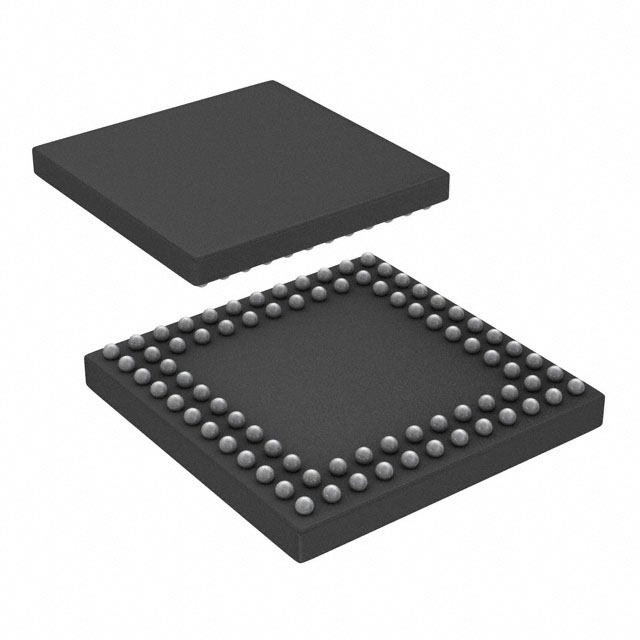

- Kılıf / Paket
- 80-LFBGA, CSPBGA
- Pin Sayısı
- 80
- Architecture
- SAR
- Sampling Rate
- 1 Msps
- Max Output Voltage
- 5V
- Conversion Timemax
- 0.8μs
- Linearity Errormax El
- 0.0244%
- Max Power Dissipation
- 42.3mW
- Çalışma Sıcaklığı
- -40°C~85°C
- Integral Nonlinearity Inl
- 3 LSB
- ECCN Kodu
- EAR99
- Signal To Noise Ratio Snr
- 70 dB
- Output Bit Code
- BINARY, 2'S COMPLEMENT BINARY
- Kurşunsuz Kodu
- no
- Temel Parça No
- AD5590
- Parça Durumu
- Obsolete
- Ratio Shadc
- 1:1
- Pin Sayısı
- 80
- Contact Plating
- Lead, Tin
- REACH Uyumluluk Kodu
- not_compliant
- Terminal Sayısı
- 80
- Settling Time
- 6 μs
- Besleme Gerilimi
- 5V
