Volume pricing
- 1+ pcs$8.97
- 10+ pcs$8.46
- 100+ pcs$7.98
- 500+ pcs$7.53
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Center Contact Plating
- Gold
- Parça Durumu
- Active
- Kurşunsuz
- Lead Free
- Body Plating
- Nickel
- RoHS Durumu
- RoHS Compliant
- Empedans
- 75Ohm
- Contact Plating
- Gold, Nickel
- Orientation
- Right Angle
- Contact Materials
- Bronze, Copper
- Frequencymax
- 3GHz
- Connector Style
- BNC
- Montaj Tipi
- Panel Mount, Through Hole, Right Angle
- Radyasyon Dayanımı
- No
- Çalışma Sıcaklığı
- -65°C~165°C
- Mating Cycles
- 500
- Body Finish
- Nickel
- Maks. Çalışma Sıcaklığı
- 165°C
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Montaj
- Bulkhead, PCB, Panel, Through Hole
- Contact Termination
- Solder
- Housing Color
- Silver
- Ambalaj
- Bulk
- Connector Type
- Jack, Female Socket
- Fabrika Tedarik Süresi
- 8 Weeks
- Terminal
- Solder
- Number Of Ports
- 1
- Insulation Materials
- Polytetrafluoroethylene
- Uzunluk
- 33.52mm
- Shield Termination
- Solder
- Insertion Loss
- 0.2dB
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Min. Çalışma Sıcaklığı
- -65°C
- Yayın Yılı
- 2011
- Includes

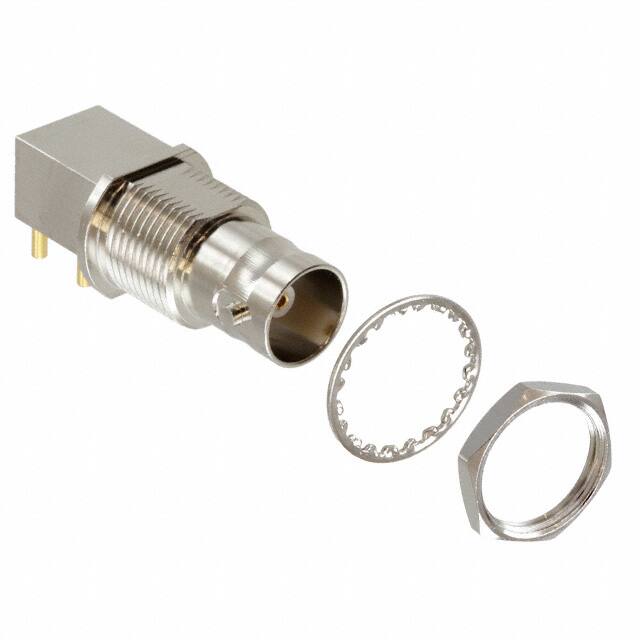

- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Body Material
- Brass
- Frekans
- 3GHz
- Nominal Gerilim
- 500V
- Center Contact Material
- Phosphor Bronze
- Fastening Type
- Bayonet Lock
- Mounting Feature
- Bulkhead - Front Side Nut
