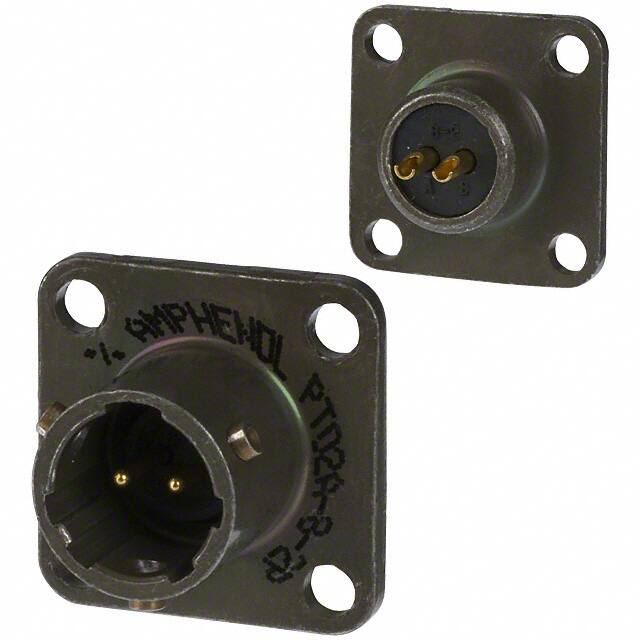

PT02A-8-2P

Specifications

Voltage Rated Ac

600V

Reach Svhc

Unknown

Nominal Gerilim

600V

RoHS Durumu

Non-RoHS Compliant

Contact Finish Mating

Gold

Shielding

Unshielded

Plating

Cadmium, Chromate

Gender

Receptacle

Wire Gauge Min

20 AWG

Total Number Of Contacts

2

Mil Conformance

YES

Nem Hassasiyeti (MSL)

1 (Unlimited)

Environmental Characteristics

CORROSION/ENVIRONMENT/MOISTURE RESISTANT

Shell Finish

Olive Drab Chromate over Cadmium

Insert Material

Neoprene

Radyasyon Dayanımı

No

Akım Değeri

7.5A

Orientation

N (Normal)

Onay Kuruluşu

UL

Wire Gauge Max

24 AWG

Parça Durumu

Active

Shell Size Insert

8-2

Empty Shell

NO

Montaj Tipi

Panel Mount

Filter Feature

NO

Body Material

Aluminium

Shell Material

Aluminum

Fabrika Tedarik Süresi

12 Weeks

Kurşunsuz

Contains Lead

Din Conformance

NO

Insulation Materials

Rubber

Montaj

Box, Flanges, Panel

Contact Materials

Copper Alloy

Fastening Type

Bayonet Lock

Renk

Olive Drab

Contact Gender

Male

Applications

Aerospace, Industrial, Instrumentation, Mass Transit, Military

Contact Style

Pin

Seri

MIL-DTL-26482 Series I, PT

Pozisyon Sayısı

2
