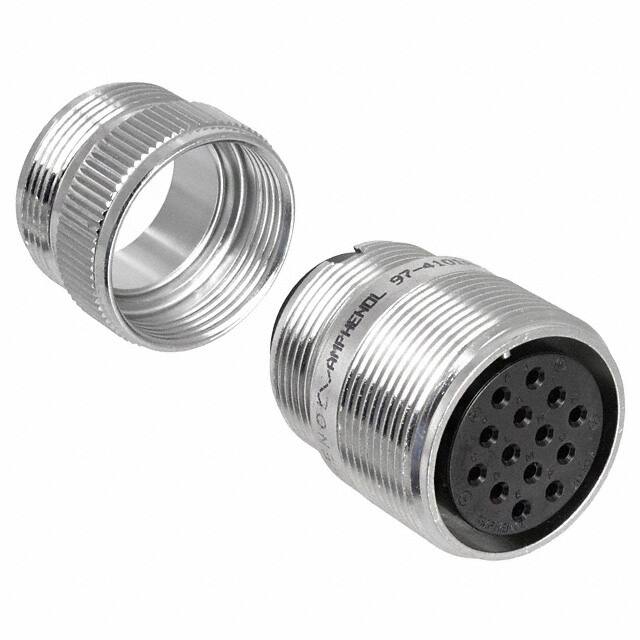

97-4101A-20-27S

Specifications

Note

Contacts Not Included

Contact Style

Socket

Tip

For Female Sockets

Empty Shell

YES

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kılıf / Paket

Metal

RoHS Durumu

Non-RoHS Compliant

Connector Type

Receptacle Housing

Fabrika Tedarik Süresi

12 Weeks

Environmental Characteristics

ENVIRONMENT RESISTANT

Contact Gender

Female

Pozisyon Sayısı

14

Option

GENERAL PURPOSE

Çalışma Sıcaklığı

-55°C~125°C

Onay Kuruluşu

CSA, UL

Shell Finish

Bright Chromate over Clear Cadmium

Kurşunsuz Kodu

yes

Voltage Rated Dc

700V

Parça Durumu

Active

Contact Shape

Circular

Contact Type

Crimp

Din Conformance

NO

Total Number Of Contacts

14

Özellikler

Backshell

Montaj Tipi

Free Hanging (In-Line)

Military Standard

MIL-DTL-5015

Shell Size Insert

20-27

Mil Conformance

YES

Filter Feature

NO

Fastening Type

Threaded

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Plating

Cadmium, Chromate

Material Flammability Rating

UL94 V-0

Montaj

Cable, Free Hanging

Shielding

Unshielded

Radyasyon Dayanımı

No

Orientation

N (Normal)

Iec Conformance

NO

Contact Sizes

16

Shell Material

Aluminum Alloy
