Volume pricing
- 1+ pcs$0.92
- 10+ pcs$0.87
- 100+ pcs$0.82
- 500+ pcs$0.77
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

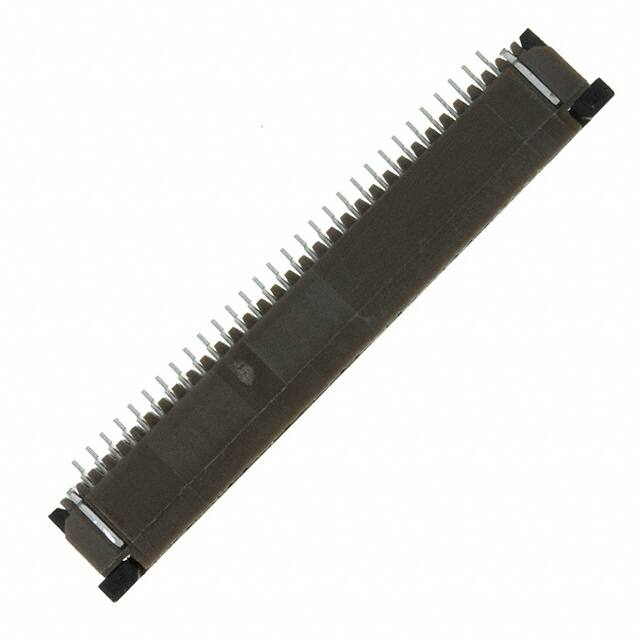

Specifications
- Housing Material
- Polyphenylene Sulfide (PPS), Glass Filled
- Gender
- Receptacle
- Radyasyon Dayanımı
- No
- Pozisyon Sayısı
- 30
- Ffc Fcb Thickness
- 0.30mm 0.33mm
- Contact Pattern
- RECTANGULAR
- Actuator Material
- Polyphenylene Sulfide (PPS), Glass Filled
- Fabrika Tedarik Süresi
- 13 Weeks
- Ul Flammability Code
- 94V-0
- Seri
- SFW-R
- Contact Materials
- Phosphor Bronze
- Rated Current Signal
- 1A
- Uzunluk
- 35.8mm
- Max Voltage Rating Dc
- 100V
- Cable End Type
- Straight, Tapered
- Iec Conformance
- NO
- Mixed Contacts
- NO
- Mating Cycles
- 20
- Parça Durumu
- Active
- Flat Flex Type
- FFC, FPC
- Orientation
- Right Angle
- Material Flammability Rating
- UL94 V-0
- Mil Conformance
- NO
- Yayın Yılı
- 2009
- Withdrawl Forcemin
- ZIF N
- Akım Değeri
- 1A
- Terminal
- Solder
- Total Number Of Contacts
- 30
- Sıra Sayısı
- 1
- Depth
- 6mm
- Contact Finish
- Tin
- Kurşunsuz
- Lead Free
- Connector Type
- FFC/FPC CONNECTOR
- Contact Resistance
- 30mOhm
- Height Above Board
- 0.106 2.70mm
- Locking Feature
- Slide Lock
- Contact Location
- Top
- Montaj
- Surface Mount
- Insulation Resistance
- 500MOhm
- RoHS Durumu
- RoHS Compliant
