Volume pricing
- 1+ pcs$0.53
- 10+ pcs$0.50
- 100+ pcs$0.47
- 500+ pcs$0.44
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

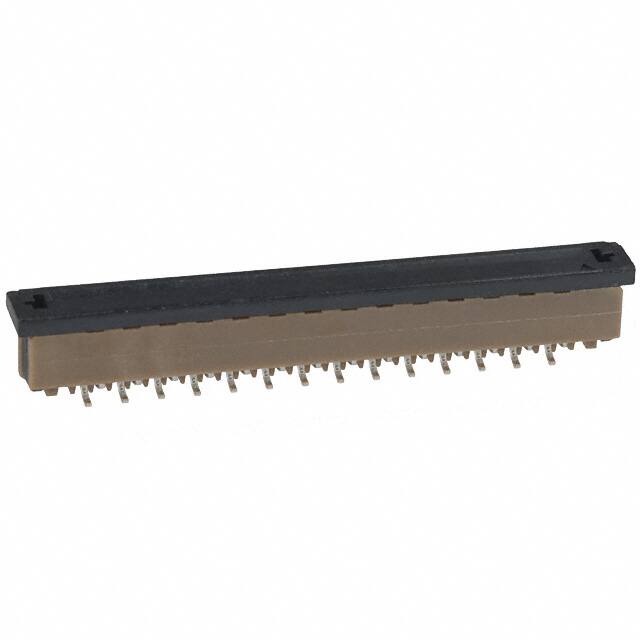

Specifications
- Cable End Type
- Straight, Tapered
- Max Voltage Rating Dc
- 100V
- Iec Conformance
- NO
- Uzunluk
- 33.8mm
- Mixed Contacts
- NO
- Parça Durumu
- Active
- Mating Cycles
- 20
- Orientation
- Straight
- Material Flammability Rating
- UL94 V-0
- Flat Flex Type
- FFC, FPC
- Yayın Yılı
- 2007
- Akım Değeri
- 1A
- Mil Conformance
- NO
- Contact Gender
- FEMALE
- Total Number Of Contacts
- 28
- Terminal
- Solder
- Depth
- 3.6mm
- Additional Feature
- TOP ENTRY, STAGGERED CONFIGURATION
- Sıra Sayısı
- 1
- Housing Material
- Thermoplastic, Glass Filled
- Pozisyon Sayısı
- 28
- Ffc Fcb Thickness
- 0.30mm 0.33mm
- Radyasyon Dayanımı
- No
- Actuator Material
- Thermoplastic, Glass Filled
- Fabrika Tedarik Süresi
- 15 Weeks
- Ul Flammability Code
- 94V-0
- Contact Materials
- Phosphor Bronze
- Seri
- SFW
- Çalışma Sıcaklığı
- -55°C~105°C
- Housing Color
- Brown
- Option
- GENERAL PURPOSE
- Max Voltage Rating Ac
- 100V
- JESD-609 Kodu
- e3
- Flammability Rating
- UL94 V-0
- Montaj Tipi
- Surface Mount
- Voltage Rated Ac
- 100V
- Özellikler
- Zero Insertion Force (ZIF)
- Pitch
- 0.039 1.00mm
- Genişlik
- 3.6mm
- Kurşunsuz Kodu
- yes
