Volume pricing
- 1+ pcs$0.61
- 10+ pcs$0.57
- 100+ pcs$0.54
- 500+ pcs$0.51
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

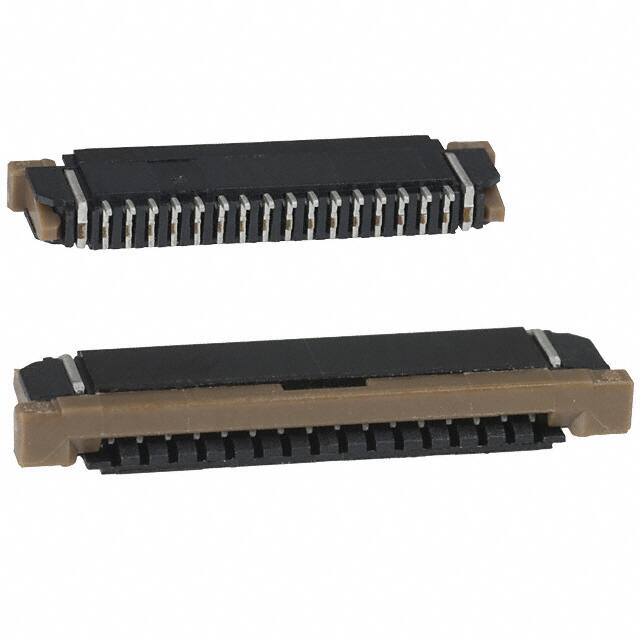

Specifications
- Seri
- SFW-R
- Contact Materials
- Phosphor Bronze
- Current Rating Amps
- 1A
- Ambalaj
- Tape & Reel (TR)
- Actuatorcolor
- Brown
- Fabrika Tedarik Süresi
- 13 Weeks
- Actuator Material
- Polyphenylene Sulfide (PPS), Glass Filled
- Min. Çalışma Sıcaklığı
- -55°C
- Insulation Resistance
- 500MOhm
- RoHS Durumu
- RoHS Compliant
- Contact Location
- Bottom
- Montaj
- Surface Mount
- Radyasyon Dayanımı
- No
- Height Above Board
- 0.106 2.70mm
- Contact Resistance
- 30mOhm
- Kurşunsuz
- Lead Free
- Locking Feature
- Slide Lock
- Pozisyon Sayısı
- 16
- Ffc Fcb Thickness
- 0.30mm 0.33mm
- Number Of Contacts
- 16
- Contact Finish
- Tin
- Gender
- Receptacle
- Housing Material
- Polyphenylene Sulfide (PPS), Glass Filled
- Sıra Sayısı
- 1
- Depth
- 6mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Genişlik
- 5.5mm
- Pitch
- 0.039 1.00mm
- Terminal
- Solder
- Özellikler
- Zero Insertion Force (ZIF)
- Voltage Rated Ac
- 100V
- Contact Plating
- Tin
- Akım Değeri
- 1A
- Montaj Tipi
- Surface Mount, Right Angle
- Yayın Yılı
- 2009
- Flat Flex Type
- FFC, FPC
- Nominal Gerilim
- 100V
- Material Flammability Rating
- UL94 V-0
- Maks. Çalışma Sıcaklığı
- 105°C
- Orientation
- Right Angle
