Volume pricing
- 1+ pcs$4.08
- 10+ pcs$3.85
- 100+ pcs$3.63
- 500+ pcs$3.43
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

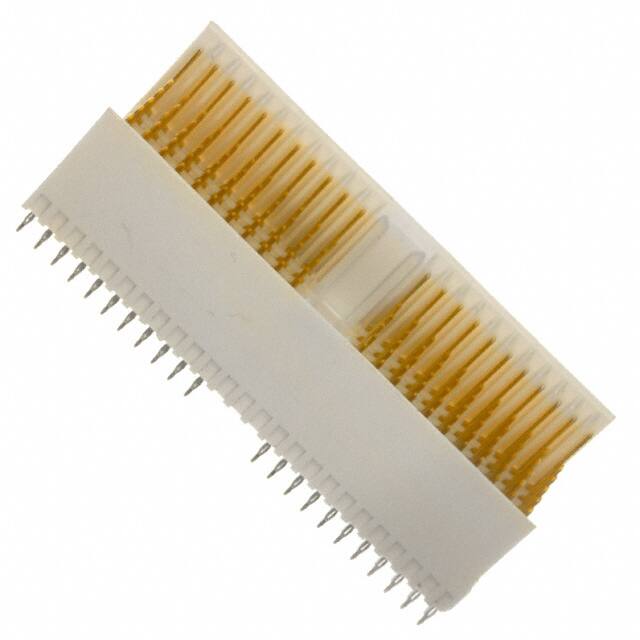

Specifications
- Package Description
- LEAD FREE
- Mil Conformance
- NO
- Manufacturer Series
- HM2
- Contact Gender
- MALE
- Uzunluk
- 49.9mm
- Number Of Rows Loaded
- 10
- Ihs Manufacturer
- FCI
- Çalışma Sıcaklığı
- -55°C~125°C
- Risk Rank
- 2.08
- Üretici Parça No
- HM2P87PD8111N9LF
- Min. Çalışma Sıcaklığı
- -55°C
- Montaj
- Through Hole
- Contact Plating
- Gold
- Akım Değeri
- 1.5A
- Additional Feature
- STANDARDS: IEC 917; IEC 61076-4-101, HIGH DENSITY, POLARIZED, 44 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE
- Total Number Of Contacts
- 220
- Terminal Adımı
- 2 mm
- ECCN Kodu
- EAR99
- Kurşunsuz Kodu
- Yes
- Fabrika Tedarik Süresi
- 8 Weeks
- Contact Finish Mating
- NOT SPECIFIED
- Iec Conformance
- NO
- Connector Type
- Header, Male Pins
- Orientation
- Straight
- Connector Style
- D 22
- Insulation Resistance
- 10GOhm
- Ul Flammability Code
- 94V-0
- Part Life Cycle Code
- Active
- Depth
- 21.4mm
- Montaj Stili
- STRAIGHT
- Pozisyon Sayısı
- 220 (176 + 44 Ground)
- Özellikler
- Board Guide
- Number Of Positions Loaded
- All
- Housing Material
- Thermoplastic
- Sıra Sayısı
- 8 + 2
- Termination Type
- PRESS FIT
- Flammability Rating
- UL94 V-0
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Resistance
- 20mOhm
- Filter Feature
- NO
