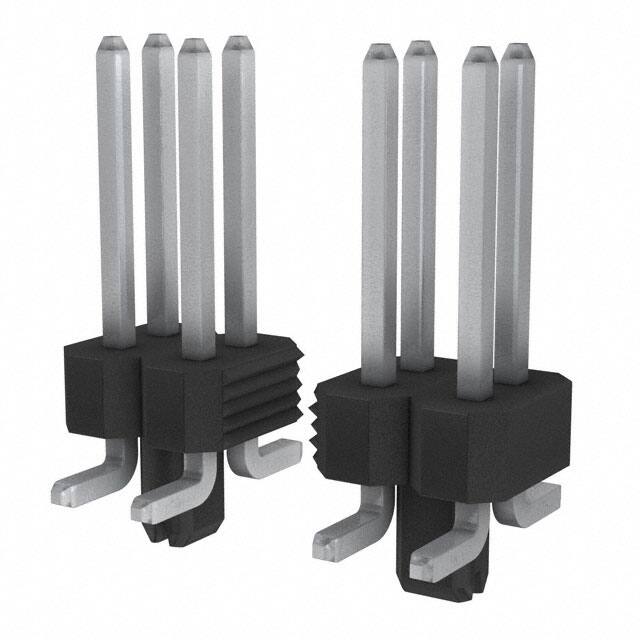

98401-402-26LF

Specifications

Ambalaj

Bulk

Sıra Sayısı

2

Material Flammability Rating

UL94 V-0

Terminal

Solder

Uzunluk

33.02mm

Flammability Rating

UL94 V-0

Insulation Height

0.084 2.14mm

Akım Değeri

3A

Contact Finish Post

Tin

Renk

Black

Connector Type

Header, Breakaway

Insulation Color

Black

RoHS Durumu

RoHS Compliant

Contact Finish Thickness Post

78.7μin 2.00μm

Contact Lengthmating

0.318 8.08mm

Nominal Gerilim

1.5kV

Insulation Materials

Thermoplastic

Number Of Contacts

26

Contact Shape

Square

Row Spacing Mating

0.100 (2.54mm)

Montaj

Surface Mount

Özellikler

Board Guide

Fastening Type

Push-Pull

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pozisyon Sayısı

26

Depth

4.83mm

Contact Plating

Tin

Contact Finish Thickness Mating

78.7μin 2.00μm

Contact Finish Mating

Tin

Insulation Resistance

5GOhm

Contact Gender

Male

Number Of Positions Loaded

All

Min. Çalışma Sıcaklığı

-65°C

Seri

BERGSTIK®

Contact Type

Male Pin

Mating Post Length

8.08mm

Max Voltage Rating Ac

1.5kV

Montaj Tipi

Surface Mount

Housing Material

Thermoplastic

Pitch

2.54mm
