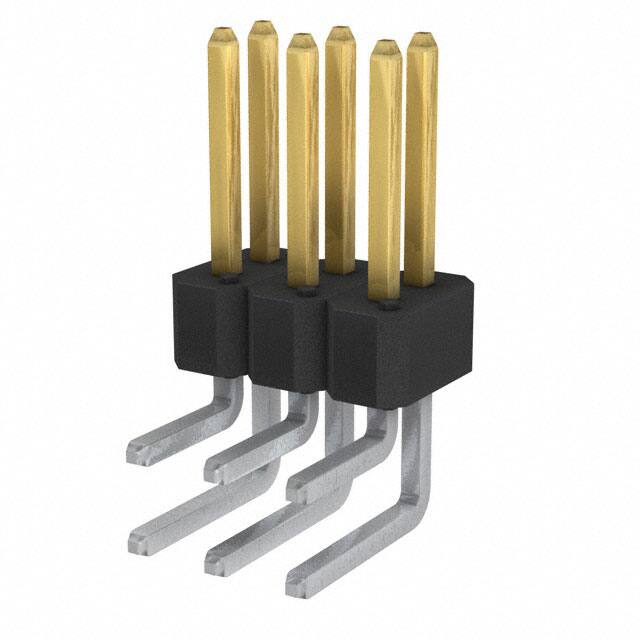

77317-812-06LF

Specifications

Parça Durumu

Active

Insulation Materials

Thermoplastic

Min. Çalışma Sıcaklığı

-65°C

Contact Finish Thickness Post

78.7μin 2.00μm

Row Spacing Mating

0.100 (2.54mm)

Fastening Type

Push-Pull

Maks. Çalışma Sıcaklığı

125°C

Pitch Mating

0.100 2.54mm

Seri

BERGSTIK®

Contact Lengthmating

0.268 6.80mm

Pitch

2.54mm

Max Voltage Rating Ac

1.5kV

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Kurşunsuz

Lead Free

Contact Materials

Phosphor Bronze

Insulation Color

Black

Montaj Tipi

Through Hole, Right Angle

Contact Shape

Square

Shrouding

Unshrouded

Depth

13.38mm

Montaj

Through Hole

Radyasyon Dayanımı

No

Housing Material

Thermoplastic

Uzunluk

7.62mm

Contact Type

Male Pin

Sıra Sayısı

2

Number Of Positions Loaded

All

Pozisyon Sayısı

6

Style

Board to Board

Contact Length Post

0.120 3.05mm

Ambalaj

Bulk

Number Of Contacts

6

Renk

Black

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

15.0μin 0.38μm

Connector Type

Header, Breakaway

Contact Plating

GXT, Gold

Contact Finish Mating

Gold, GXT™
