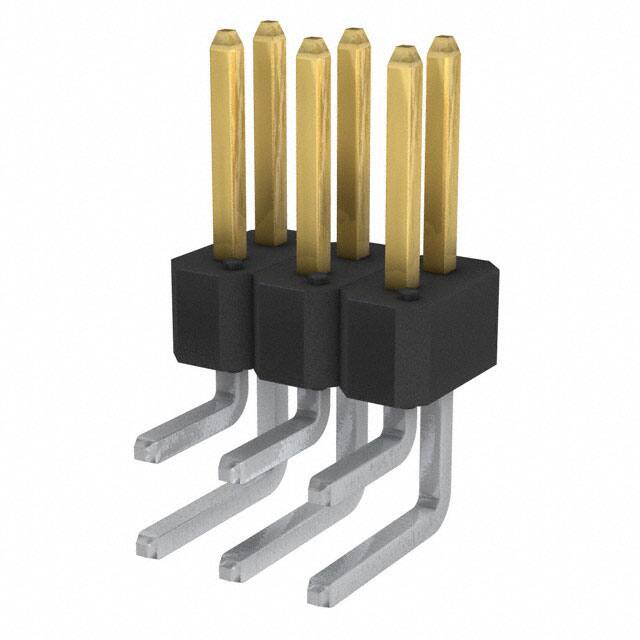

77317-103-06LF

Specifications

Contact Type

Male Pin

Uzunluk

7.62mm

Pozisyon Sayısı

6

Sıra Sayısı

2

Number Of Positions Loaded

All

Ambalaj

Bulk

Number Of Contacts

6

Style

Board to Board

Contact Length Post

0.100 2.54mm

Connector Type

Header, Breakaway

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Finish Mating

Gold, GXT™

Contact Plating

GXT, Gold

Flammability Rating

UL94 V-0

Material Flammability Rating

UL94 V-0

Yayın Yılı

2016

Housing Color

Black

Insulation Resistance

5GOhm

Fabrika Tedarik Süresi

8 Weeks

Orientation

Right Angle

Row Spacing Mating

0.100 (2.54mm)

Insulation Materials

Thermoplastic

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Maks. Çalışma Sıcaklığı

125°C

Contact Gender

Male

Pitch

2.54mm

Seri

BERGSTIK®

Montaj

Through Hole

Radyasyon Dayanımı

No

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Shrouding

Unshrouded

Insulation Color

Black

Montaj Tipi

Through Hole, Right Angle

Housing Material

Thermoplastic

Contact Finish Post

Tin

Renk

Black

Akım Değeri

3A

Insulation Height

0.190 4.83mm
