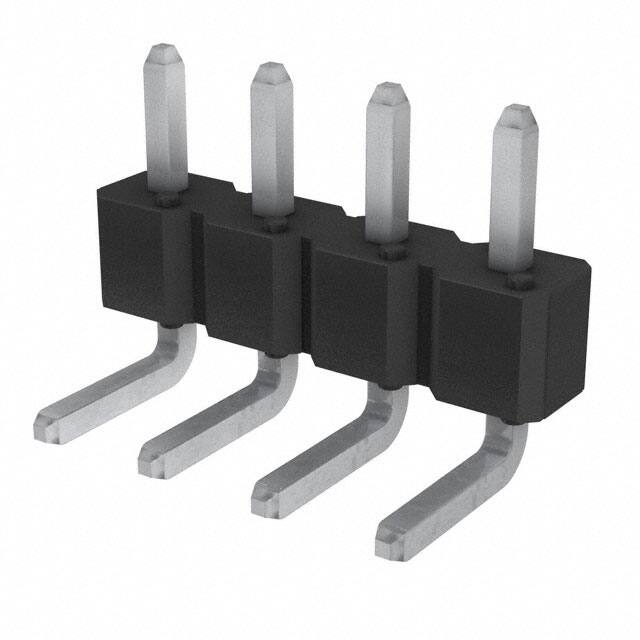

77315-428-04LF

Specifications

Ambalaj

Bulk

Number Of Contacts

4

Style

Board to Board

Contact Length Post

0.122 3.10mm

Uzunluk

10.16mm

Contact Type

Male Pin

Sıra Sayısı

1

Number Of Positions Loaded

All

Pozisyon Sayısı

4

Housing Material

Thermoplastic

Akım Değeri

3A

Housing Color

Black

Insulation Resistance

5GOhm

Insulation Height

0.094 2.40mm

Orientation

Right Angle

Fabrika Tedarik Süresi

8 Weeks

Contact Finish Thickness Mating

78.7μin 2.00μm

Connector Type

Header, Breakaway

Contact Plating

Tin

Contact Finish Post

Tin

Contact Finish Mating

Tin

Flammability Rating

UL94 V-0

Renk

Black

Material Flammability Rating

UL94 V-0

Max Voltage Rating Ac

1.5kV

RoHS Durumu

RoHS Compliant

Maks. Çalışma Sıcaklığı

125°C

Pitch Mating

0.100 2.54mm

Seri

BERGSTIK®

Contact Lengthmating

0.122 3.10mm

Pitch

2.54mm

Contact Gender

Male

Min. Çalışma Sıcaklığı

-65°C

Contact Finish Thickness Post

78.7μin 2.00μm

Nominal Gerilim

1.5kV

Fastening Type

Push-Pull

Parça Durumu

Active

Insulation Materials

Thermoplastic

Radyasyon Dayanımı

No

Montaj

Through Hole
