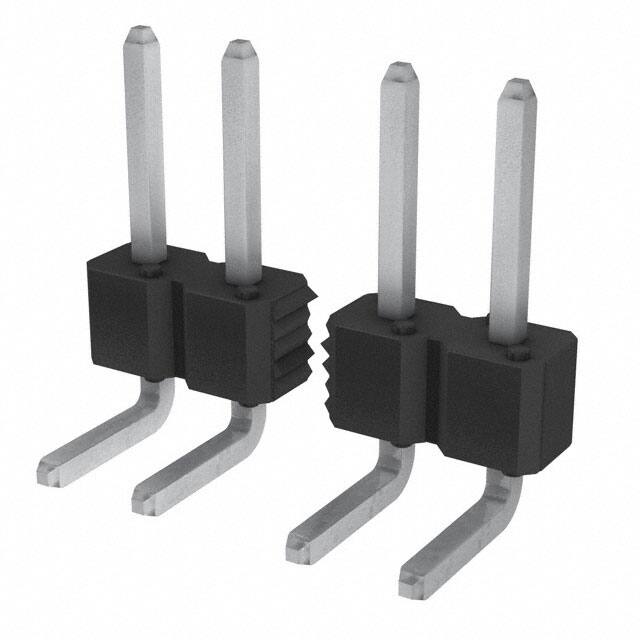

77315-401-11LF

Specifications

Contact Length Post

0.101 2.57mm

Style

Board to Board

Mating Post Length

5.84mm

Ambalaj

Bulk

Number Of Contacts

11

Contact Type

Male Pin

Uzunluk

27.94mm

Pozisyon Sayısı

11

Sıra Sayısı

1

Number Of Positions Loaded

All

Housing Color

Black

Insulation Resistance

5GOhm

Fabrika Tedarik Süresi

8 Weeks

Orientation

Right Angle

Lead Length

2.41mm

Yayın Yılı

2016

Flammability Rating

UL94 V-0

Material Flammability Rating

UL94 V-0

Connector Type

Header, Breakaway

Contact Finish Thickness Mating

78.7μin 2.00μm

Contact Finish Mating

Tin

Contact Plating

Tin

Maks. Çalışma Sıcaklığı

125°C

Contact Gender

Male

Pitch

2.54mm

Seri

BERGSTIK®

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Insulation Materials

Thermoplastic

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Shrouding

Unshrouded

Insulation Color

Black

Montaj Tipi

Through Hole, Right Angle

Montaj

Through Hole

Housing Material

Thermoplastic

Insulation Height

0.094 2.40mm

Akım Değeri

3A

Renk

Black

Contact Finish Post

Tin
