Volume pricing
- 1+ pcs$2.37
- 10+ pcs$2.24
- 100+ pcs$2.11
- 500+ pcs$1.99
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

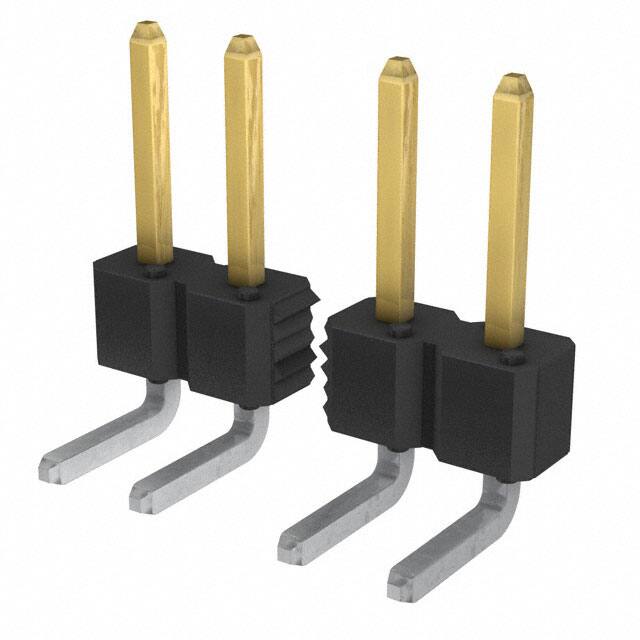

Specifications
- Contact Finish Post
- Tin
- Contact Finish Mating
- Gold or Gold, GXT™
- Contact Plating
- GXT, Gold
- Connector Type
- Header, Breakaway
- Contact Finish Thickness Mating
- 30.0μin 0.76μm
- Material Flammability Rating
- UL94 V-0
- Renk
- Black
- Yayın Yılı
- 2016
- Fabrika Tedarik Süresi
- 8 Weeks
- Insulation Height
- 0.094 2.40mm
- Orientation
- Right Angle
- Housing Color
- Black
- Pozisyon Sayısı
- 32
- Sıra Sayısı
- 1
- Number Of Positions Loaded
- All
- Contact Type
- Male Pin
- Uzunluk
- 81.28mm
- Housing Material
- Thermoplastic
- Number Of Contacts
- 32
- Ambalaj
- Bulk
- Contact Length Post
- 0.120 3.05mm
- Style
- Board to Board
- Montaj
- Through Hole
- Insulation Color
- Black
- Montaj Tipi
- Through Hole, Right Angle
- Contact Shape
- Square
- Shrouding
- Unshrouded
- Depth
- 9.88mm
- Contact Materials
- Phosphor Bronze
- Terminal
- Solder
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Fastening Type
- Push-Pull
- Contact Finish Thickness Post
- 78.7μin 2.00μm
- Min. Çalışma Sıcaklığı
- -65°C
- Parça Durumu
- Active
- Insulation Materials
- Thermoplastic
- RoHS Durumu
- RoHS Compliant
- Max Voltage Rating Ac
- 1.5kV
- Contact Lengthmating
- 0.230 5.84mm
- Pitch
- 2.54mm
