Volume pricing
- 1+ pcs$2.05
- 10+ pcs$1.93
- 100+ pcs$1.82
- 500+ pcs$1.72
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Renk
- Black
- Contact Finish Post
- Tin
- Insulation Height
- 0.100 2.54mm
- Yükseklik
- 3.048mm
- Genişlik
- 12.7mm
- Akım Değeri
- 3A
- Housing Material
- Thermoplastic
- Kurşunsuz
- Lead Free
- Contact Materials
- Phosphor Bronze
- Depth
- 4.83mm
- Number Of Poles
- 72
- Terminal
- Solder
- Fastening Type
- Push-Pull
- Nominal Gerilim
- 1.5kV
- Min. Çalışma Sıcaklığı
- -65°C
- Contact Finish Thickness Post
- 78.7μin 2.00μm
- Contact Lengthmating
- 0.230 5.84mm
- Pitch Mating
- 0.100 2.54mm
- Max Voltage Rating Ac
- 1.5kV
- Material Flammability Rating
- UL94 V-0
- Contact Plating
- Tin
- Contact Finish Mating
- Tin
- Contact Finish Thickness Mating
- 78.7μin 2.00μm

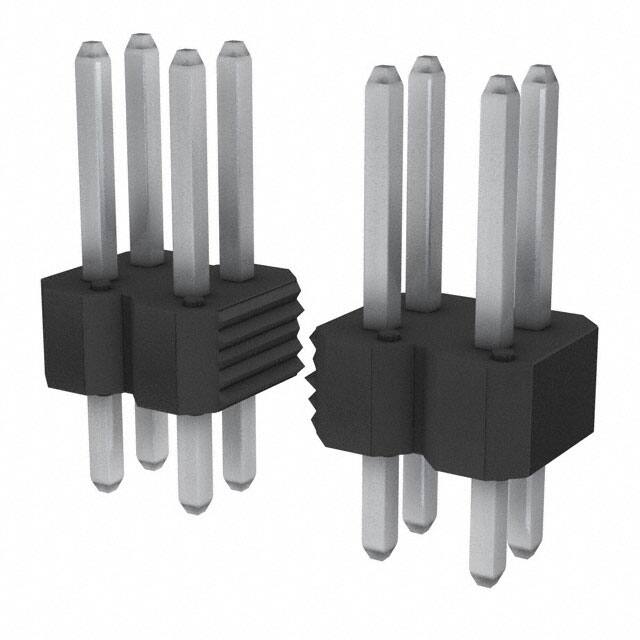

- Connector Type
- Header, Breakaway
- Orientation
- Straight
- Reach Svhc
- No SVHC
- Fabrika Tedarik Süresi
- 8 Weeks
- Housing Color
- Black
- Insulation Resistance
- 5GOhm
- Lead Length
- 3.05mm
- Number Of Positions Loaded
- All
- Sıra Sayısı
- 2
- Pozisyon Sayısı
- 72
- Voltage Rated Ac
- 500V
- Uzunluk
- 91.44mm
- Contact Type
- Male Pin
- Overall Contact Length
- 0.450 11.43mm
- Mating Post Length
- 5.84mm
- Style
- Board to Board or Cable
- Contact Length Post
- 0.120 3.05mm
