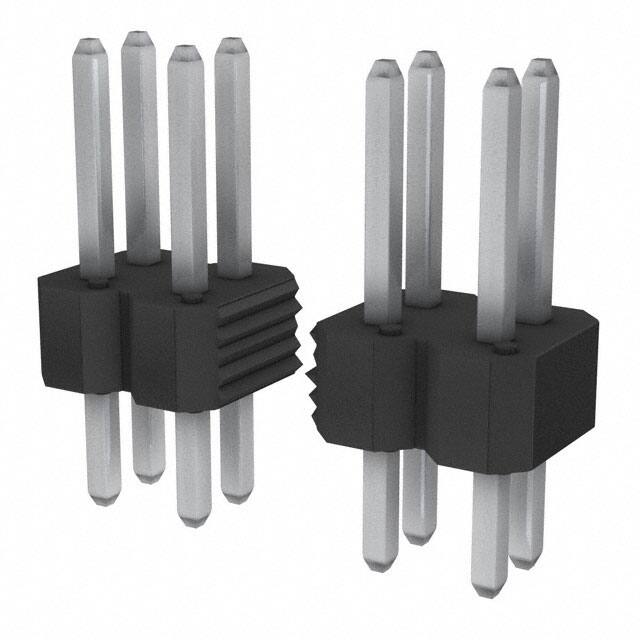

77313-402-70LF

Specifications

Contact Lengthmating

0.230 5.84mm

Pitch Mating

0.100 2.54mm

Max Voltage Rating Ac

1.5kV

Fastening Type

Push-Pull

Nominal Gerilim

1.5kV

Min. Çalışma Sıcaklığı

-65°C

Contact Finish Thickness Post

78.7μin 2.00μm

Depth

4.83mm

Contact Materials

Phosphor Bronze

Terminal

Solder

Housing Material

Thermoplastic

Insulation Height

0.100 2.54mm

Akım Değeri

3A

Renk

Black

Contact Finish Post

Tin

Contact Gender

Male

Pitch

2.54mm

Seri

BERGSTIK®

Maks. Çalışma Sıcaklığı

125°C

RoHS Durumu

RoHS Compliant

Gender

Male

Insulation Materials

Thermoplastic

Parça Durumu

Active

Row Spacing Mating

0.100 (2.54mm)

Insulation Color

Black

Montaj Tipi

Through Hole

Shrouding

Unshrouded

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Through Hole

Overall Contact Length

0.465 11.81mm

Mating Post Length

5.84mm

Contact Length Post

0.135 3.43mm

Style

Board to Board or Cable

Number Of Contacts

70

Ambalaj

Bulk

Pozisyon Sayısı

70

Number Of Positions Loaded

All

Sıra Sayısı

2

Contact Type

Male Pin
