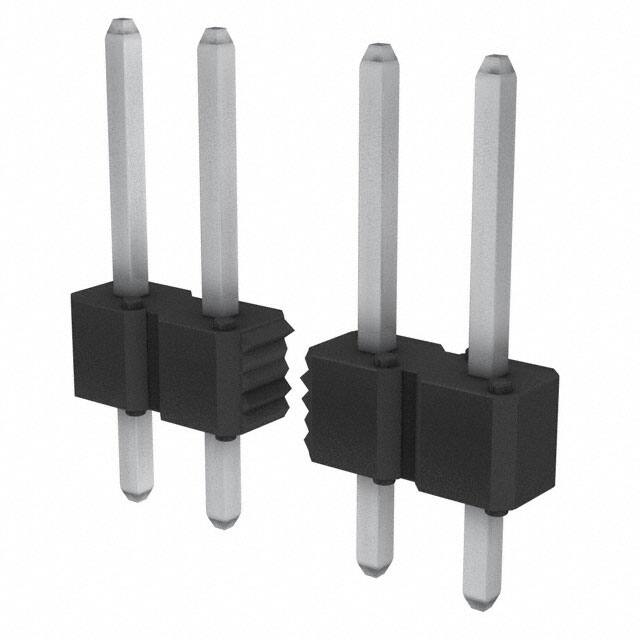

77311-424-05LF

Specifications

Contact Lengthmating

0.266 6.75mm

Pitch Mating

0.100 2.54mm

Max Voltage Rating Ac

1.5kV

Fastening Type

Push-Pull

Nominal Gerilim

1.5kV

Contact Finish Thickness Post

78.7μin 2.00μm

Min. Çalışma Sıcaklığı

-65°C

Contact Materials

Phosphor Bronze

Kurşunsuz

Lead Free

Depth

2.4mm

Terminal

Solder

Housing Material

Thermoplastic

Insulation Height

0.100 2.54mm

Akım Değeri

3A

Renk

Black

Contact Finish Post

Tin

Seri

BERGSTIK®

Pitch

2.54mm

Contact Gender

Male

Maks. Çalışma Sıcaklığı

125°C

Gender

Male

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Insulation Materials

Thermoplastic

Montaj Tipi

Through Hole

Insulation Color

Black

Shrouding

Unshrouded

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Radyasyon Dayanımı

No

Montaj

Through Hole

Overall Contact Length

0.480 12.19mm

Contact Length Post

0.114 2.90mm

Style

Board to Board

Mating Post Length

6.75mm

Number Of Contacts

5

Ambalaj

Bulk

Sıra Sayısı

1

Number Of Positions Loaded

All

Pozisyon Sayısı

5
