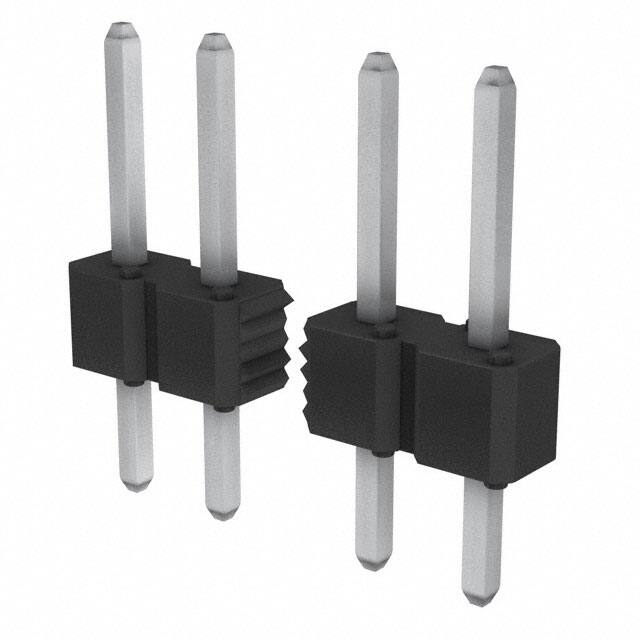

77311-402-09LF

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Contact Materials

Phosphor Bronze

Depth

2.4mm

Shrouding

Unshrouded

Contact Shape

Square

Montaj Tipi

Through Hole

Insulation Color

Black

Montaj

Through Hole

Parça Durumu

Active

Insulation Materials

Thermoplastic

Min. Çalışma Sıcaklığı

-65°C

Contact Finish Thickness Post

78.7μin 2.00μm

Fastening Type

Push-Pull

Pitch Mating

0.100 2.54mm

Maks. Çalışma Sıcaklığı

125°C

Seri

BERGSTIK®

Pitch

2.54mm

Contact Lengthmating

0.230 5.84mm

Max Voltage Rating Ac

1.5kV

RoHS Durumu

RoHS Compliant

Renk

Black

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

78.7μin 2.00μm

Connector Type

Header

Contact Plating

Tin

Contact Finish Mating

Tin

Contact Finish Post

Tin

Housing Color

Black

Orientation

Straight

Insulation Height

0.100 2.54mm

Fabrika Tedarik Süresi

7 Weeks

Housing Material

Thermoplastic

Uzunluk

22.86mm

Contact Type

Male Pin

Number Of Positions Loaded

All

Sıra Sayısı

1

Pozisyon Sayısı

9

Style

Board to Board

Contact Length Post

0.135 3.43mm
