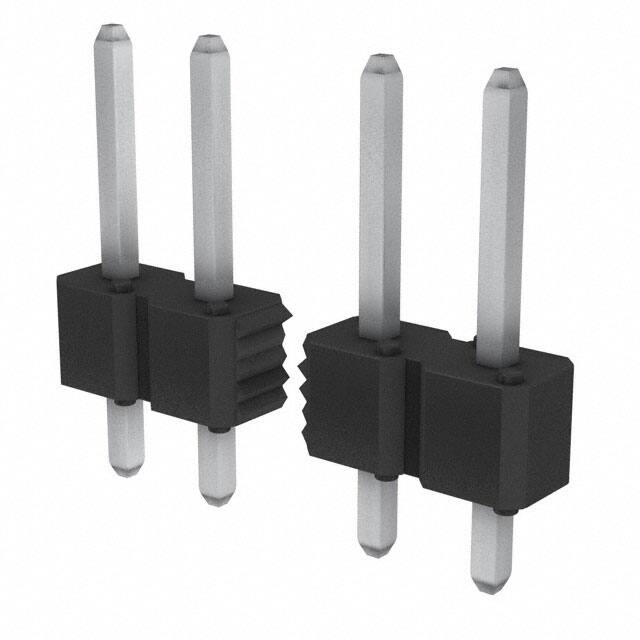

77311-401-20LF

Specifications

Montaj

Through Hole

Depth

2.4mm

Shrouding

Unshrouded

Contact Shape

Square

Montaj Tipi

Through Hole

Insulation Color

Black

Contact Materials

Phosphor Bronze

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

1.5kV

Pitch

2.54mm

Contact Lengthmating

0.230 5.84mm

Seri

BERGSTIK®

Maks. Çalışma Sıcaklığı

125°C

Pitch Mating

0.100 2.54mm

Fastening Type

Push-Pull

Contact Finish Thickness Post

78.7μin 2.00μm

Min. Çalışma Sıcaklığı

-65°C

Insulation Materials

Thermoplastic

Parça Durumu

Active

Yayın Yılı

2016

Fabrika Tedarik Süresi

7 Weeks

Insulation Height

0.100 2.54mm

Orientation

Straight

Housing Color

Black

Contact Finish Mating

Tin

Contact Finish Post

Tin

Contact Plating

Tin

Connector Type

Header

Contact Finish Thickness Mating

78.7μin 2.00μm

Material Flammability Rating

UL94 V-0

Renk

Black

Number Of Contacts

20

Ambalaj

Bulk

Overall Contact Length

0.425 10.80mm

Contact Length Post

0.095 2.41mm

Style

Board to Board

Pozisyon Sayısı

20

Number Of Positions Loaded

All
