Volume pricing
- 1+ pcs$0.47
- 10+ pcs$0.44
- 100+ pcs$0.42
- 500+ pcs$0.39
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

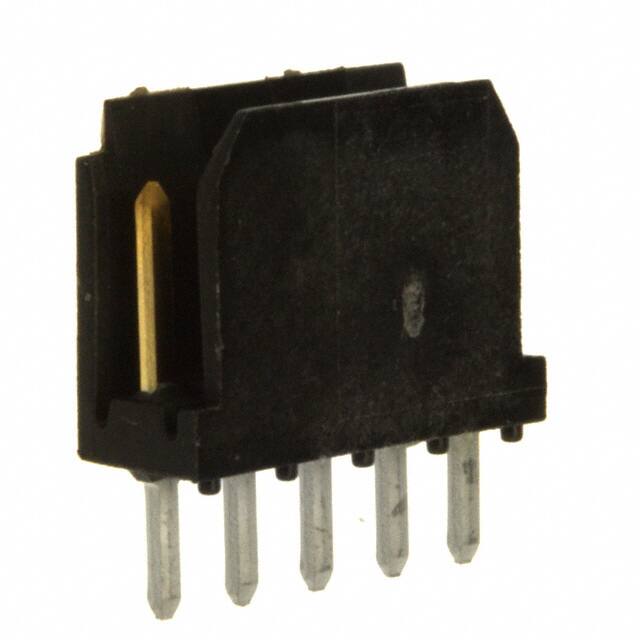

Specifications
- Pitch
- 2.54mm
- Min. Çalışma Sıcaklığı
- -40°C
- RoHS Durumu
- RoHS Compliant
- Contact Lengthmating
- 0.197 5.00mm
- Number Of Contacts
- 5
- Nominal Gerilim
- 1kV
- Seri
- Dubox™
- Pozisyon Sayısı
- 5
- Uzunluk
- 11.7mm
- Contact Finish Post
- Tin
- Mating Post Length
- 5mm
- Lead Length
- 3.4mm
- Insulation Height
- 0.368 9.35mm
- Housing Material
- Thermoplastic
- Material Flammability Rating
- UL94 V-0
- Contact Length Post
- 0.134 3.40mm
- Overall Contact Length
- 0.411 10.44mm
- Contact Finish Thickness Mating
- 30.0μin 0.76μm
- Insulation Resistance
- 100GOhm
- Sıra Sayısı
- 1
- Kurşunsuz
- Lead Free
- Parça Durumu
- Active
- Contact Finish Mating
- Gold, GXT™
- Pin Sayısı
- 5
- Insulation Color
- Black
- Contact Plating
- Gold
- Contact Materials
- Copper Alloy
- Depth
- 5mm
- Radyasyon Dayanımı
- No
- Contact Type
- Male Pin
- Orientation
- Straight
- Connector Type
- Header
- Gender
- Male
- Shrouding
- Shrouded - 2 Wall
- Number Of Positions Loaded
- All
- Housing Color
- Black
- Montaj
- Through Hole
- Insulation Materials
- Thermoplastic, Glass Filled
- Maks. Çalışma Sıcaklığı
- 125°C
- Reach Svhc
- No SVHC
