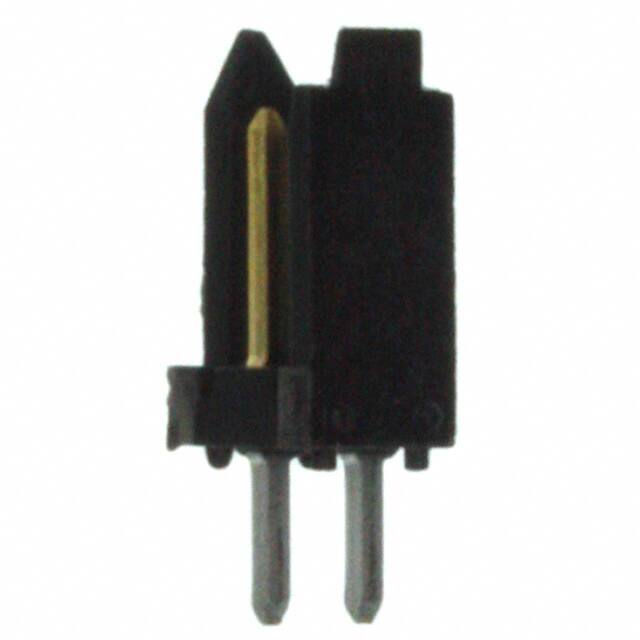

76384-302LF

Specifications

Contact Lengthmating

0.197 5.00mm

Seri

Dubox™

Nominal Gerilim

1kV

Number Of Contacts

2

Uzunluk

4.08mm

Contact Finish Post

Tin

Pozisyon Sayısı

2

Lead Length

3.4mm

Mating Post Length

5mm

Insulation Height

0.368 9.35mm

Pitch

2.54mm

RoHS Durumu

RoHS Compliant

Min. Çalışma Sıcaklığı

-40°C

Insulation Resistance

100GOhm

Contact Finish Thickness Mating

30.0μin 0.76μm

Sıra Sayısı

1

Kurşunsuz

Lead Free

Contact Finish Mating

Gold, GXT™

Parça Durumu

Active

Contact Materials

Copper Alloy

Pin Sayısı

2

Insulation Color

Black

Contact Plating

Gold

Depth

5mm

Housing Material

Thermoplastic

Material Flammability Rating

UL94 V-0

Contact Length Post

0.134 3.40mm

Overall Contact Length

0.411 10.44mm

Maks. Çalışma Sıcaklığı

125°C

Reach Svhc

No SVHC

Contact Finish Thickness Post

78.7μin 2.00μm

Pitch Mating

0.100 2.54mm

Terminal

Solder

Radyasyon Dayanımı

No

Contact Type

Male Pin

Orientation

Straight

Connector Type

Header

Shrouding

Shrouded - 2 Wall

Gender

Male

Housing Color

Black
