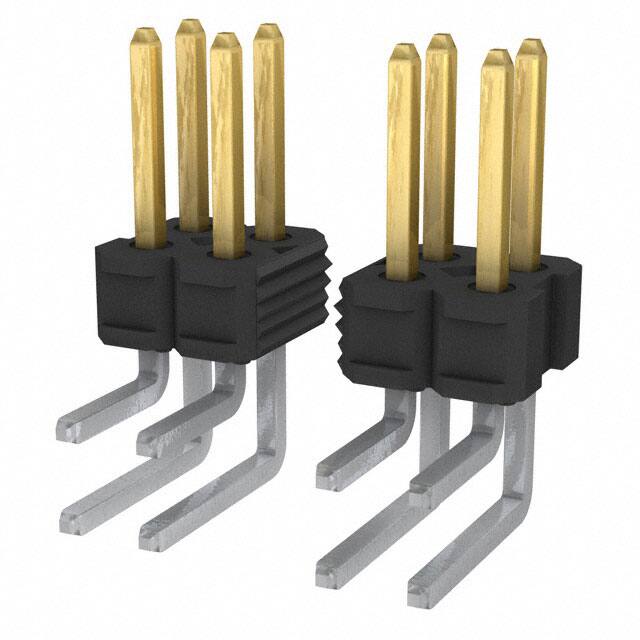

76350-104-14LF

Specifications

Contact Lengthmating

0.230 5.84mm

Row Spacing Mating

0.100 (2.54mm)

Number Of Contacts

14

Seri

BERGSTIK®

Uzunluk

17.78mm

Pitch Mating

0.100 2.54mm

Pozisyon Sayısı

14

Terminal

Solder

Insulation Height

0.200 5.08mm

Contact Type

Male Pin

Pitch

2.54mm

Orientation

Right Angle

Connector Type

Header

Shrouding

Unshrouded

Housing Color

Black

Number Of Positions Loaded

All

RoHS Durumu

RoHS Compliant

Insulation Materials

Thermoplastic

Montaj

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

30.0μin 0.76μm

Sıra Sayısı

2

Kurşunsuz

Lead Free

Contact Finish Mating

Gold, GXT™

Parça Durumu

Active

Yayın Yılı

2014

Fastening Type

Push-Pull

Insulation Color

Black

Contact Materials

Phosphor Bronze

Contact Plating

GXT, Gold

Contact Shape

Square

Depth

12.44mm

Renk

Black

Style

Board to Board

Material Flammability Rating

UL94 V-0

Housing Material

Thermoplastic

Fabrika Tedarik Süresi

8 Weeks

Ambalaj

Bulk

Contact Length Post

0.120 3.05mm

Montaj Tipi

Through Hole, Right Angle
