Volume pricing
- 1+ pcs$1.54
- 10+ pcs$1.45
- 100+ pcs$1.37
- 500+ pcs$1.29
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

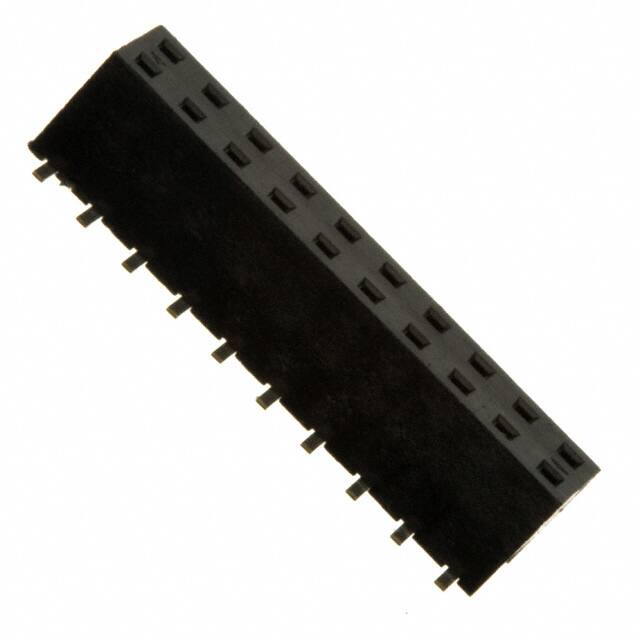

Specifications
- Pozisyon Sayısı
- 20
- Insulation Height
- 0.177 4.50mm
- Fabrika Tedarik Süresi
- 8 Weeks
- Maks. Çalışma Sıcaklığı
- 125°C
- Contact Plating
- Gold
- Çalışma Sıcaklığı
- -55°C~125°C
- Kurşunsuz
- Lead Free
- Max Voltage Rating Ac
- 200V
- Pitch Mating
- 0.079 2.00mm
- Terminal
- Solder
- Row Spacing Mating
- 0.079 (2.00mm)
- Montaj
- Surface Mount
- Yayın Yılı
- 2011
- Applications
- General Purpose, Industrial, Medical
- Insulation Materials
- Plastic
- Seri
- Minitek® 2.00mm
- Contact Shape
- Square
- Parça Durumu
- Active
- Nominal Gerilim
- 200V
- Current Rating Amps
- 2A
- Number Of Contacts
- 20
- Housing Material
- Plastic
- Fastening Type
- Push-Pull
- Genişlik
- 4mm
- Contact Materials
- Phosphor Bronze
- Number Of Positions Loaded
- All
- Contact Resistance
- 20mOhm
- Stack Height
- 4.5mm
- Min. Çalışma Sıcaklığı
- -55°C
- Contact Finish Mating
- Gold
- Uzunluk
- 19.92mm
- Insulation Color
- Black
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Style
- Board to Board
- Depth
- 4mm
- Contact Finish Post
- Tin
- Sıra Sayısı
- 2
- Housing Color
- Black
- Renk
- Black
- Max Voltage Rating Dc
- 200V
