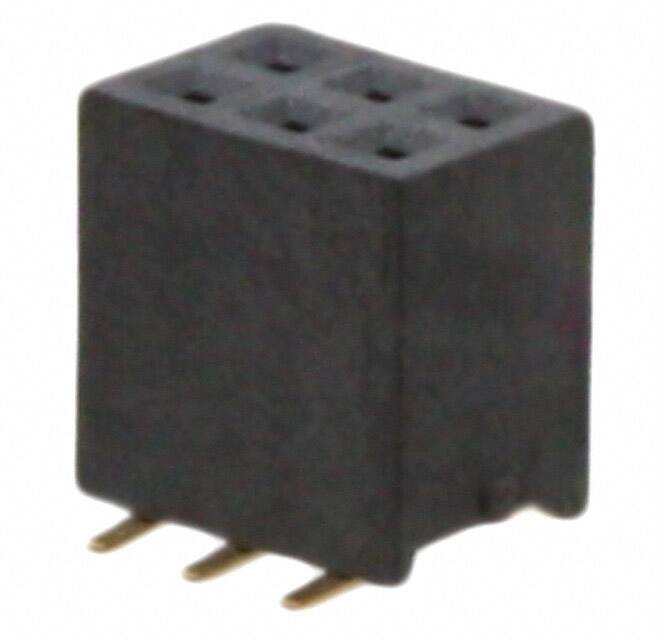

20021321-00006C4LF

Specifications

Orientation

Straight

Style

Board to Board

Contact Resistance

30mOhm

Contact Plating

Gold

Fastening Type

Push-Pull

Maks. Çalışma Sıcaklığı

85°C

Pitch Mating

0.050 1.27mm

Pin Sayısı

6

Number Of Positions Loaded

All

RoHS Durumu

RoHS Compliant

Depth

3mm

Çalışma Sıcaklığı

-40°C~105°C

Reach Svhc

No SVHC

Max Voltage Rating Ac

125V

Uzunluk

8.08mm

Montaj

Surface Mount

Insulation Height

0.177 4.50mm

Seri

Minitek127® 1.27mm

Stack Height

4.3mm

Pozisyon Sayısı

6

Insulation Color

Black

Parça Durumu

Active

Insulation Resistance

100MOhm

Connector Type

Receptacle

Akım Değeri

1A

Material Flammability Rating

UL94 V-0

Ambalaj

Tape & Reel (TR)

Number Of Contacts

6

Terminal

Solder

Montaj Tipi

Surface Mount

Row Spacing Mating

0.050 (1.27mm)

Fabrika Tedarik Süresi

7 Weeks

Contact Finish Thickness Mating

10.0μin 0.25μm

Housing Color

Black

Kurşunsuz

Lead Free

Renk

Black

Contact Materials

Phosphor Bronze

Pitch

1.27mm

Insulation Materials

Plastic

Gender

Receptacle
