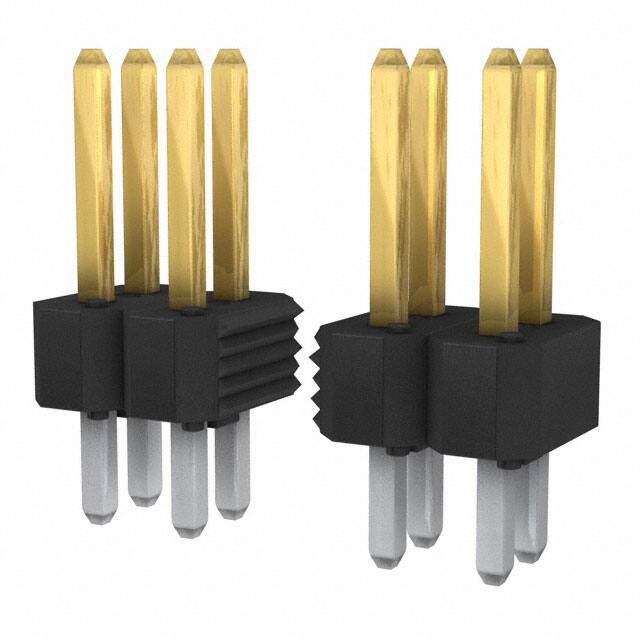

10076801-101-32LF

Specifications

Uzunluk

40.64mm

Number Of Contacts

32

Housing Color

Black

Pitch

2.54mm

Connector Type

Header, Breakaway

Contact Type

Male Pin

Row Spacing Mating

0.100 (2.54mm)

Material Flammability Rating

UL94 V-0

Akım Değeri

3A

Contact Finish Mating

Gold or Gold, GXT™

Number Of Positions Loaded

All

Min. Çalışma Sıcaklığı

-65°C

Radyasyon Dayanımı

No

Yayın Yılı

2016

Sıra Sayısı

2

Contact Plating

GXT, Gold

Style

Board to Board

Mating Post Length

5.84mm

Renk

Black

Contact Finish Thickness Post

78.7μin 2.00μm

Terminal

Solder

Contact Shape

Square

RoHS Durumu

RoHS Compliant

Shrouding

Unshrouded

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Housing Material

Thermoplastic

Ambalaj

Bulk

Contact Length Post

0.098 2.50mm

Nominal Gerilim

1.5kV

Parça Durumu

Active

Contact Finish Thickness Mating

30.0μin 0.76μm

Insulation Resistance

5GOhm

Insulation Color

Black

Pitch Mating

0.100 2.54mm

Fabrika Tedarik Süresi

8 Weeks

Insulation Materials

Thermoplastic

Contact Materials

Phosphor Bronze

Overall Contact Length

0.440 11.18mm

Pozisyon Sayısı

32
