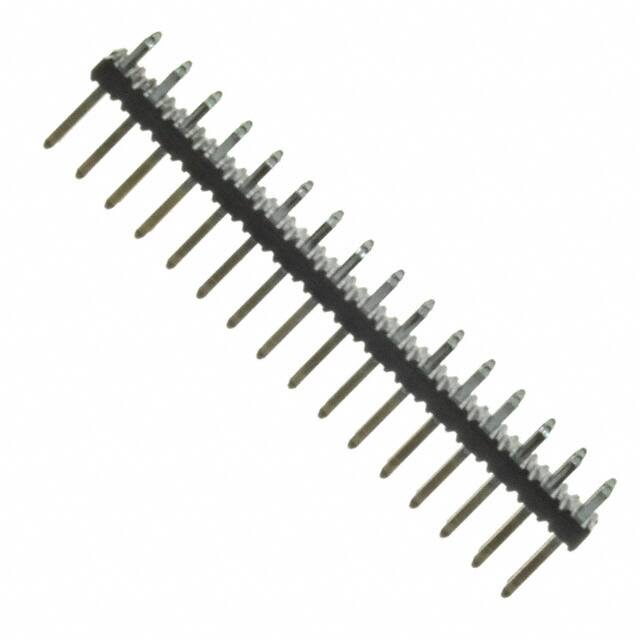

10075024-G01-16ULF

Specifications

Gender

Male

Depth

4mm

Pozisyon Sayısı

32

Lead Length

2mm

Contact Materials

Copper Alloy

Overall Contact Length

0.295 7.49mm

Maks. Çalışma Sıcaklığı

125°C

Reliability

COMMERCIAL

Montaj

Through Hole

Seri

Minitek® 2.00mm

JESD-609 Kodu

e3

Contact Lengthmating

0.157 4.00mm

Orientation

Straight

Number Of Conductors

ONE

Mil Conformance

NO

Max Voltage Rating Ac

650V

Montaj Tipi

Through Hole

Insulation Height

0.059 1.50mm

Contact Finish Post

Tin

Iec Conformance

NO

Pitch Mating

0.079 2.00mm

Fabrika Tedarik Süresi

8 Weeks

Insulation Color

Black

Contact Finish Thickness Mating

30.0μin 0.76μm

Insulation Resistance

1GOhm

Contact Resistance

25mOhm

Insertion Forcemax

1.7514 N

Insulation Materials

Thermoplastic

Kurşunsuz Kodu

yes

Din Conformance

NO

Withdrawl Forcemin

.1946 N

Option

GENERAL PURPOSE

Mating Contact Pitch

0.079 inch

RoHS Durumu

RoHS Compliant

Shrouding

Unshrouded

Terminal

Solder

Plating Thickness

30μin

Contact Shape

Square

Contact Finish Thickness Post

78.7μin 2.00μm

Body Breadth

0.157 inch
