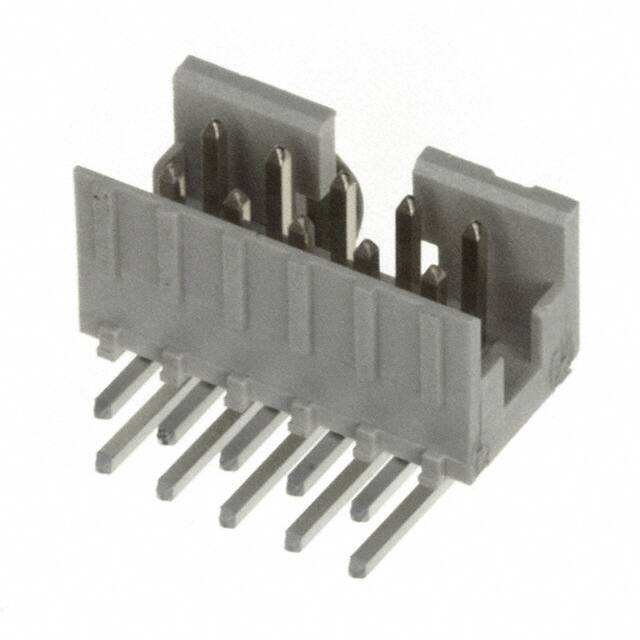

10072354-G01-10ULF

Specifications

Style

Board to Board or Cable

Contact Plating

GXT, Gold

Mating Post Length

4mm

Sıra Sayısı

2

Radyasyon Dayanımı

No

Number Of Positions Loaded

All

Min. Çalışma Sıcaklığı

-40°C

Row Spacing Mating

0.079 (2.00mm)

Contact Finish Mating

Gold, GXT™

Material Flammability Rating

UL94 V-0

Akım Değeri

2A

Housing Color

Cream

Uzunluk

12mm

Number Of Contacts

10

Current Rating Amps

2A AC/DC

Reach Svhc

No SVHC

Connector Type

Header

Contact Type

Male Pin

Pitch

2mm

Contact Length Post

0.079 2.00mm

Nominal Gerilim

200V AC/DC

Housing Material

Thermoplastic

Ambalaj

Tube

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Detent Lock

Contact Shape

Square

Terminal

Solder

RoHS Durumu

RoHS Compliant

Shrouding

Shrouded - 4 Wall

Renk

Cream

Contact Finish Thickness Post

78.7μin 2.00μm

Insulation Materials

Thermoplastic

Insulation Color

Cream

Fabrika Tedarik Süresi

8 Weeks

Pitch Mating

0.079 2.00mm

Insulation Resistance

1GOhm

Özellikler

Keying Slot

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Lengthmating

0.157 4.00mm
